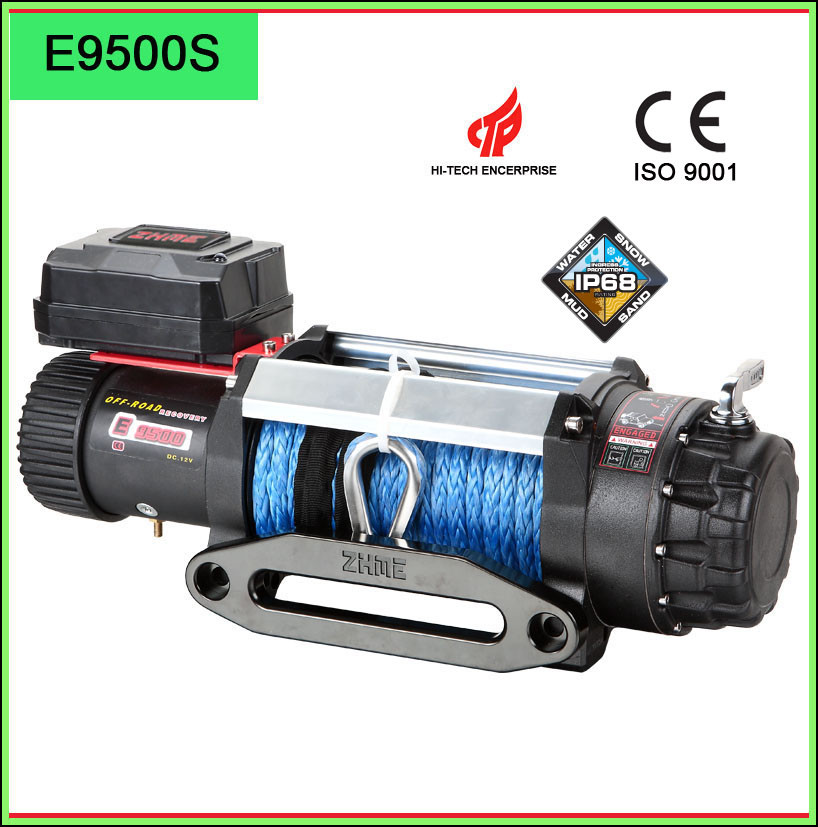

Zhme Professional Electric Winch with Water Proof Function

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$290.0 - $310.0 / Piece

Min. Order (Pieces)	Unit Price
15.0	US $ 310/ Piece
400.0	US $ 290/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Sep 01, 2014 To Sep 14, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E9500S

Type:Electric Winch

Certification:CE

Brand:Zhme

Rated Line Pull:9500lbs(4310kgs)

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000PCS / Month

Product Description

Specification:

Rated line pull: 9500lbs (4310 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 212: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Synthetic rope 9.5mmX26m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 79lbs (36 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets.

Accessories:
Zhme Professional Electric Winch with Water Proof Function

Dimensions:
Zhme Professional Electric Winch with Water Proof Function

Line speed and motor current (first layer)
Ling pull	Lbs	0	2000	6000	8000	9500
Ling pull	Kgs	0	907	2722	3629	4309
Line speed	FPM	29.5	13.5	9.2	7.5	6.7
Line speed	MPM	9	4.1	2.8	2.3	2.1
Motor current	Amps	70	120	170	220	300

Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	9500	8070	7250	6600
Rated line pull per layer	Kgs	4310	3660	3289	2994
Cable capacity layer	Ft.	17.7	40.7	67.9	98.4
Cable capacity layer	M	5.4	12.4	20.7	28
