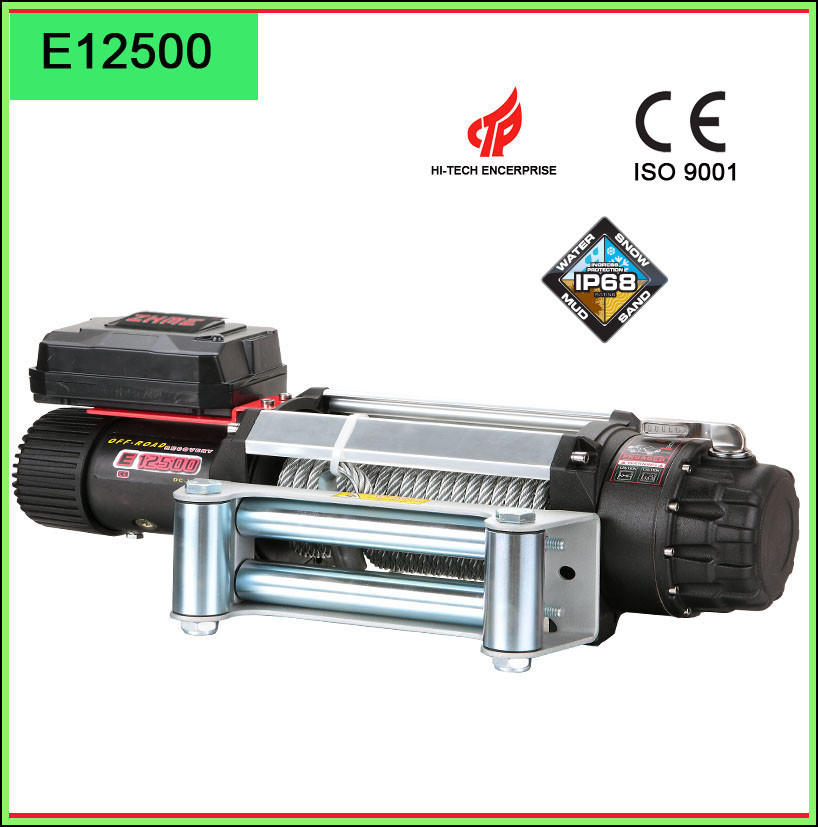

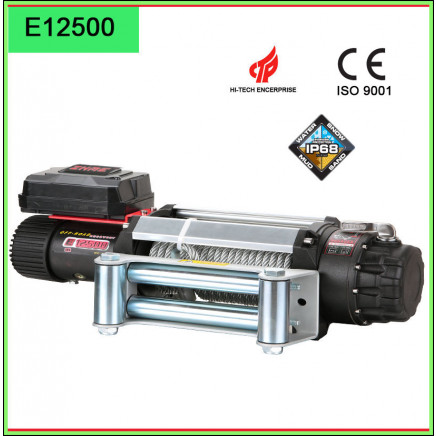

Zhme Recovery Winch with Steel Rope 12500lbs

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$200.0 - $400.0 / Piece

Min. Order (Pieces)	Unit Price
15.0	US $ 200/ Piece
400.0	US $ 400/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Nov 08, 2014 To Nov 30, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E12500

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:4-Way

Brand:Zhme

Applicable Environment:Snow,Swamp,Desert

Certification:CE

Color:Black Textured

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:1000PCS / Month

Product Description

Recovery winch E 12500

Rated line pull: 12500lbs (5670 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 262: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Synthetic rope 11mmX24m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 79lbs (36 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, pallets Optional
