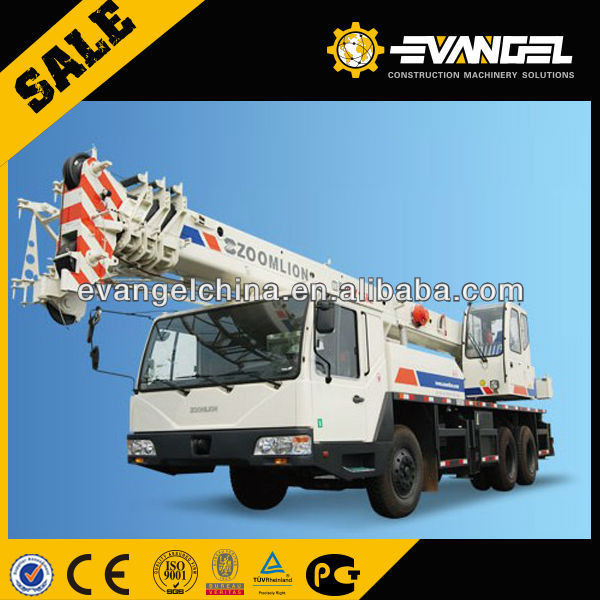

Zoomlion 50 Ton 42m Truck Cranes (QY50V532)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, EXW, CIF, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms:L/C, T/T, D/P, Western Union, Paypal

Trademark:Zoomlion

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY50V532

Type:Bridge Crane

Application:Construction Usage

Sling Type:Wire Rope

Power Source:Hydraulic

Certification:CE

Condition:New

Brand Name:Zoomlion

Rated Lifting Moment:1764kn.M

Rated Loading Capacity:50 Ton

Max. Lifting Height:58.3m

Export Markets:Global

Additional Info.

Trademark:Zoomlion

Packing:Nude

Standard:ce

Origin:Hunan, China (Mainland)

HS Code:84743900

Production Capacity:300 Sets/Month

Product Description

Features of Zoomlion 50 ton New truck cranes (QY50V532)

QY50V532 truck crane is a new-generation and high-performance product. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.

The truck crane, with spacious cab and luxurious equipments, adopts full slewing system, telescopic boom, hydraulic proportional control system and self-made full-width special purpose chassis with four axles. 8× 4 drive and hydraulic power steering mechanism provides the crane with good driving performance and flexible steering.

The system with latest load feedback hydraulic operated proportional directional control valve and quadruple gear pump, and the safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage to makes full use of the working capacity of each actuating mechanism. Thus the reliability and safety of the crane are increased.

The safety devices: Load moment limiter, and the complete lighting system

Item			Value	Remarks
Working performance specification	Max. rated total lifting capacity kg		50000
	Max. load moment of basic boom kN. m		1764	1470(Outrigger beam half extended)
	Max. load moment with max. main boom length kN. m		940.8	793.8(Outrigger beam half extended)
	Max. lifting height of basic boom m		11.6
	Max. lifting height of main boom m		42.1	Deformation of boom is not taken into consideration
	Max. lifting height of fly jib m		58.3
Working speed	Max. speed of single rope on main winch m/min		130	The 4 th layer of drum
	Max. speed of single rope onauxiliary winch m/min		72	The 2 nd layer of drum
	Derricking time of boom s		50
	Telescopic time of boom s		95
	Slewing speed r/min		0~2
Traveling specification	Max. traveling speed km/h		76
	Max. gradeability %		32
	Min. turning circle diameter m		24
	Min. ground clearance mm		260
	Limits for exhaust pollutants and smoke		Comply with related standards	GB3847-2005 GB17691-2005 (Stage III)
	Oil consumption per hundred kilometers L		48
Mass specification	Deadweight of crane in traveling condition kg		41000
	Complete vehicle kerb mass kg		40470
	Front axle load kg		17200
	Rear axle load kg		23800
Dimension specification	Overall dimensions(L× W× H)mm mm		13300× 2750× 3650
	Base on outriggers m		5.92
	Distance between outriggers m		6.90
	Main boom length m		11.1~42.0
	Main boom angle°		-2~80
	Fly jib length m		9.5, 16
	Offset angle of fly jib °		0, 30
Chassis	Model		ZLJ5414
	Class		II
	Engine	Model	WP10.336	QSL 325
		Rated power KW/r/min	247/2200	242/2200
		Max. output torque N. m/r/min	1250/1200~1600	1424/1500
