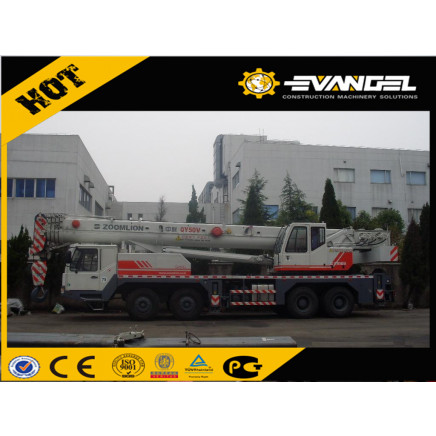

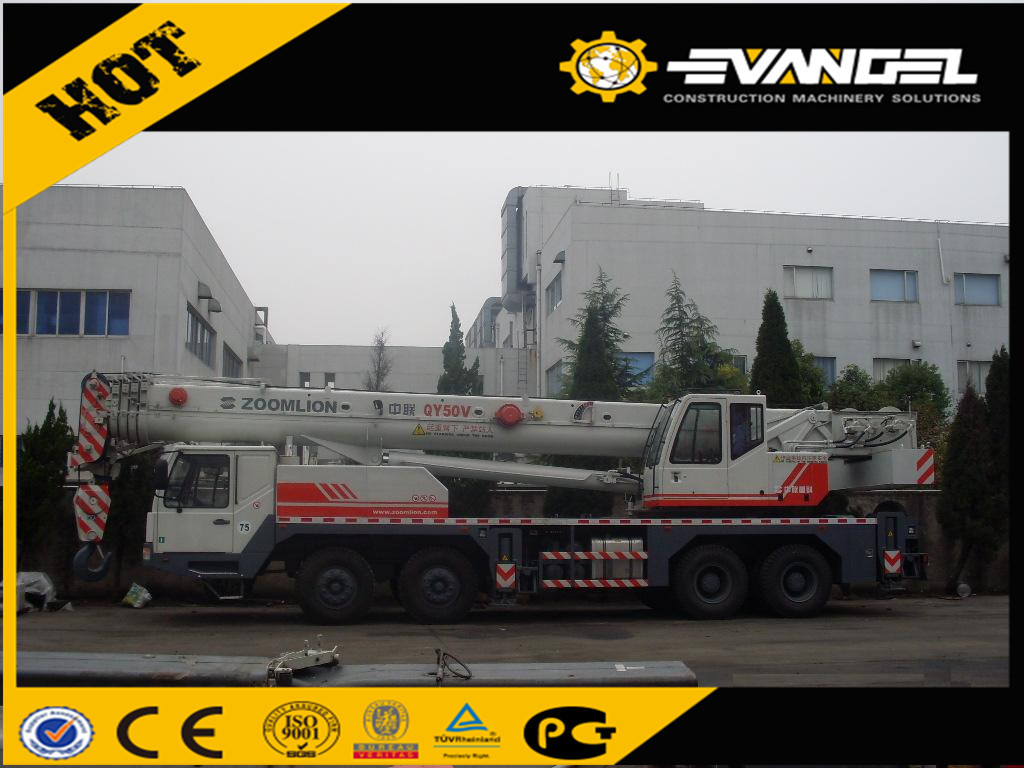

Zoomlion 50 Ton Truck Crane (QY50V)

More Views

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DDP, CIP

Payment Terms:T/T, Western Union

Trademark:ZOOMLION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:QY50V

Export Markets:Global

Trademark:ZOOMLION

Packing:Suitable Package for Shipment

Standard:CE, ISO9001

Origin:China

Production Capacity:100 Sets/ Month

Performance of the mobile crane of QY50V

QY50G Truck crane is equipment with high configuration and strong overweight performance,its good stability, fuel-efficient as well as environment protection characters make its cost performance much higher than other similaer products in the field of truck crane
the type of hosting boom has five sections and two sections of jibs,the maximum lifting weifht is 42m which is in industry-leading level being usded widely in all working situation
the compact structure of the boom head and sling head make our maintenanee much easier, the cution range of the lifiting points is much larger
the optimizing hydraulic sysytem of the supperstructure, sensitive and rlianl owning goood microperfamcne the sysytem of which is less overflow,is high-efficiency.

Item			Value	Remarks
Working performance specification	Max. rated total lifting capacity		50000 kg
	Max. load moment of basic boom		1764 kn.m	1470(Outrigger beam half extended)
	Max. load moment with max. main boom length		940.8 kn.m	793.8(Outrigger beam half extended)
	Max. lifting height of basic boom		11.6 m
	Max. lifting height of main boom		42.1 m	Deformation of boom is not taken into consideration
	Max. lifting height of fly jib		58.3 m
Working speed	Max. speed of single rope on main winch		130 m /min	The 4 th layer of drum
	Max. speed of single rope onauxiliary winch		72 m /min	The 2 nd layer of drum
	Derricking time of boom		50 s
	Telescopic time of boom		95 s
	Slewing speed		0~2 r/min
Traveling specification	Max. traveling speed		76 km/h
	Max. gradeability		32%
	Min. turning circle diameter		24 m
	Min. ground clearance		260 mm
	Limits for exhaust pollutants and smoke		Comply with related standards	GB3847-2005

				GB17691-2005

				(Stage III )
	Oil consumption per hundred kilometers		48 L
Mass specification	Deadweight of crane in traveling condition		41000 kg
	Complete vehicle kerb mass		40470 kg
	Front axle load		17200 kg
	Rear axle load		23800 kg
Dimension specification	Overall dimensions (LWH)		13300×2750×3650 mm
	Base on outriggers		5.92 m
	Distance between outriggers		6.9 m
	Main boom length m		11.1-42.0 m
	Main boom angle		-2 ~ 80
	Fly jib length		9.5, 16 m
	Offset angle of fly jib		0 ,30
Chassis	Model		ZLJ5414
	Class		II
	Engine	Model	WP10.336	QSL 325
		Rated power KW/r/min	247/2200	242/2200
		Max. output torque N.m/r/min	1250/1200 ~ 1600	1424/1500
