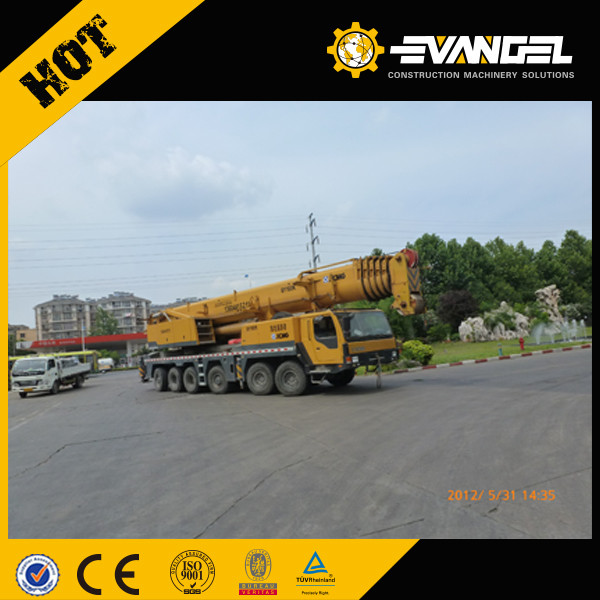

35 Ton Mobile Crane XCMG Truck Crane QY35K5

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAP, FCA

Payment Terms:L/C, T/T, Western Union

Trademark:XCMG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY35K5

Type:Truck Crane

Application:Construction Usage

Sling Type:Wire Rope

Power Source:Hydraulic

Certification:ISO9001: 2000

Condition:New

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Suitable Package for Shipment

Standard:ISO

Origin:Xuzhou, China

Production Capacity:30PCS/Month

Product Description

XCMG QY35K5 Truck Crane 35 Ton

1. General Specifications
Max. Rated lifting capacity: 35 t (with 5th outrigger jack, 360 degree operation of the boom)
Max. Lifting moment: 1200kN. M
Overall length: 12.61m
Overall width: 2.50m
Overall height: Approx. 3.35m
Total vehicle curb weight: Approx. 36.47t

2. Carrier
Self-designed and manufactured carrier with 4 axles, full dimension cab. Max. Traveling speed is 75km/h
Driving/ steering: 8× 4× 4
Turning radius: 9.75m
Ground clearance: 260mm
Grade ability: 40%

2.1 Frame
Self-designed and manufactured frame with all floors covered, optimized design of loaded structure, anti-torsion box-typed structure, made of high tension steel. Boxes in which outriggers are stowed lie between 2ND and 3rd axle and in the rear of the frame. Front and rear tow-hooks are available.

2.2 Carrier Engine:
Manufacturer: Hangzhou Automotive Engine Plant
Model: 6CL320-2(Dongfeng Brand)
Fuel: Diesel fuel
Coolant: Water
Number of cylinder: 6
Rated output power: 235kw/2200rpm.
Rated torque power: 1250Nm/1400rpm
Silencer: Made of steel, coated with silver color paint
Environmental protection performance: Complies with Euro II
Fuel tank capacity: Approx. 250 L

Category	Item		Unit	Parameters
Dimensions	Overall length		mm	12620
	Overall width		mm	2500
	Overall height		mm	3350
Weight	Dead weight in travel state		kg	36470
	Axle	Axle 1 \ 2	kg	12470
		Axle 3 \ 4	kg	24000
Power	Engine rated output		kw/(r/min)	206/2200
	Engine rated torque		N. m/(r/min)	1100/1400
	Max. Travel speed		r/min	2200
Travel	Travel speed	Max. Travel speed	km/h	75
	Turning diameter	Min. tuning diameter	mm	19500
	Min. ground clearance		mm	260
	Approach angle			17°
	Departure angle			15.7°
	Max. Grand ability		%	40%
	Fuel consumption of 100km		L	30

Table 2-2 Main Technical Data for Lifting Operation

Category	Item			Unit	Parameters
Lifting performance	Max. Total rated lifting load			t	35
	Min. rated working radius			m	3
	Turning radius at swing table tail			m	3.055
	Max. Load moment	Base boom		kN. m	1200
		Full-extend boom		kN. m	674.24
	Outrigger extension distance	Longitudinal		m	5.35
		Lateral		m	6.0
Working speed	Boom elevating time	Boom rising		s	68
	Boom telescoping time	Full-extending		s	155
	Max. Slewing speed			r/min	2.5
	Hoisting speed (single, the 3 rd layer)	Main winch	Full load	m/min	75
			No load	m/min	130
		Auxiliary winch	Full load	m/min	75
			No load	m/min	130
