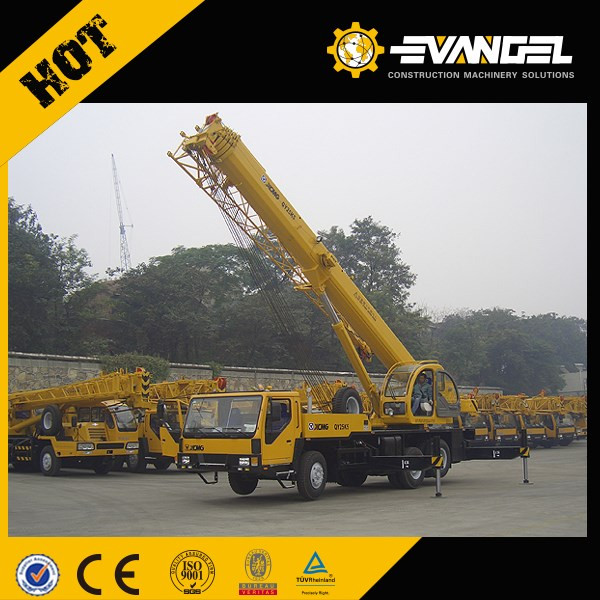

35ton Hoist Machinery XCMG Mobile Truck Crane (QY35K5)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram

Trademark:XCMG

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY35K5

Type:Small Crane

Application:Construction Usage, Workshop Usage

Sling Type:Cable

Power Source:Hydraulic

Certification:ISO9001: 2000

Condition:New

Payload:35ton

Brand:Xcmg

Export Markets:Global

Additional Info.

Trademark:XCMG

Packing:Nude Package

Standard:CE

Origin:Xuzhou, China

HS Code:87051091

Production Capacity:50 Sets/Month

Product Description

35ton lifting machinery XCMG Truck Crane QY35K5
1. Four axles
2. Shangchai (235KW) EURO III engine, full coverage board
3. 5-section octagon main boom 39.6m and two jibs 15m, dual independent winch, Hirschman force limiter
4. Cooling and heating air conditioner and heat emitter and five outriggers
5. Full head cab, pilot
6. Total Dimention(mm): 12000*2500*3380
7. Max. Operation weight(Kg): 35000.

Dimension	Unit	QY35K5
Overall length	mm	12620
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	36930
Front axle load	kg	12330
Rear axle load	kg	24600
Power
Engine model		SC9DK320Q3
Engine rated power	kW/(r/min)	235 / 2200
Engine rated torque	N. m/(r/min)	1250 / 1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	19.5
Min. ground clearance	mm	260
Approach angle	°	17
Departure angle	°	15.7
Max. grade ability	%	40
Fuel consumption for 100km	L	30
Main performance
Max. rated total lifting capacity	t	35
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.055
Max. lifting torque	kN. m	1200
Base boom	m	10.5
Fully extended boom	m	39.6
Fully extended boom+ jib	m	54.6
Longitudinal outrigger span	m	5.35
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	? 155
Max. swing speed	r/min	? 2.5
Max. speed of main winch (single rope)	m/min	? 130
Max. speed of aux. winch (single rope)	m/min	? 130
