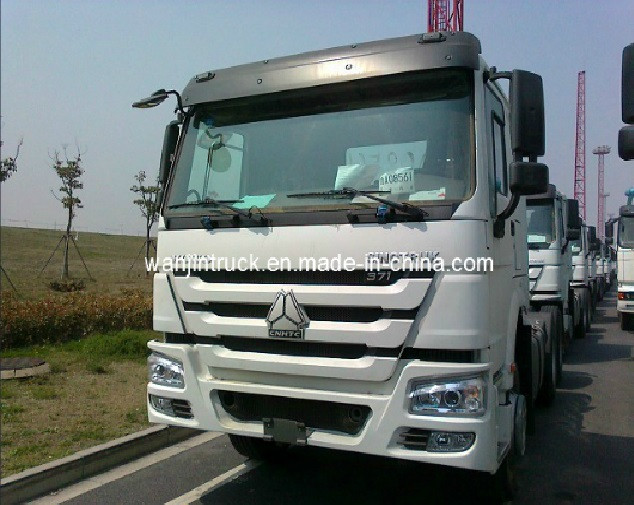

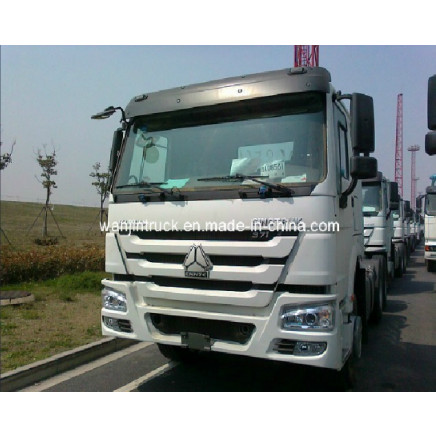

371HP HOWO Zz4257s3241W Haulage Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 38500.0-54000.0/ Piece

Price:$38500.0 - $54000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From May 27, 2015 To Jun 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ4257S3241W

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6×4

Seats:?5

Horsepower:351-450hp

Engine Capacity:?8L

Tire Type:Tubeless

Tire Certification:CCC

Tire Design:Tubeless

Condition:New

Cab:Hw76, 2 Seats with 1 Bed, with Air Conditioner

Engine:371HP, Euro2

Transmission:10 Forward and 2 Reverse

Front Axle:9000kgs

Export Markets:South America, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:HOWO

Packing:Nude

Standard:CCC

Origin:China

HS Code:8701200000

Production Capacity:20000 Units Per Year

Product Description

371HP HOWO HAULAGE TRUCK
Brand; SINOTRUK HOWO
Cab; HW76, 2 seats with 1 bed, with air conditioner
Engine: 371HP, Euro2
Transmission: 10 forward and 2 reverse
Front axle: 9000kgs
Driving axle: 2*16000kgs
Tire: 12R22.5; 13R22.5; 12.00R20
Kingpin: 2''OR 3.5''
Different color is avaiable with same price.

Howo dump truck cab	Model	HW76 Standard cabin/ HW70 without cabin
	type	Standerd cab with one bunk,heating and ventilating system,exterior sun visor,adjustable steering wheel,air horn,air conditioner,with 4-point support fully floating suspension and shock absorbers.
HOWO Dump truck Engine	model	Sinotruck WD615.69
	type	6-cylinder in-line with water cooling;4-stroke direct injection; turbo-charging and inter-cooling
	Output	336hp
	Displacement	9.726L
	Max torque Nm/rpm	1350 at 1100-1600
HOWO dump truck Transmission	Model	HW15710,10Forward& 2 Reverse.
	Ratio	14.28,10.62,7.87,5.88,4.38,3.27,2.43,1.80,1.34,1,13.91(R1),3.18(R2)
Howo Dump truck Front axle	Model	HF9
	Rated Loading Capcacity	9 tons rated loading capacity
Howo Dump truck Rear axle	Model	HC16 double reduction rear driving axle
	Rated Loading Capcacity	16 tons rated loading capacity
Howo Dump truck Steering	Model	ZF series steering with power assistance
Howo Dump truck Tyre	Model	11:00R20;11:00-20;12:00R20,12:00-20
	Type	Bias tyre or Radial tyre
	tyre quantity	11 units with one spare tyre
Howo Dump truck Cargo box	Cargo box size	5200x2300x1400 mm
	Thickness of cargo box	8mm floor and 6 mm side,10mm floor and 8 mm side is optional
	HydraulicLift	Ventral lifting,front lifting is optional
Howo dump truck Curb weight		12500 kg
Howo dump truck Wheel base (mm)		3425+1350
The dump truck Max Speed		75km/h
The dump truck economical speed		60 km/h
