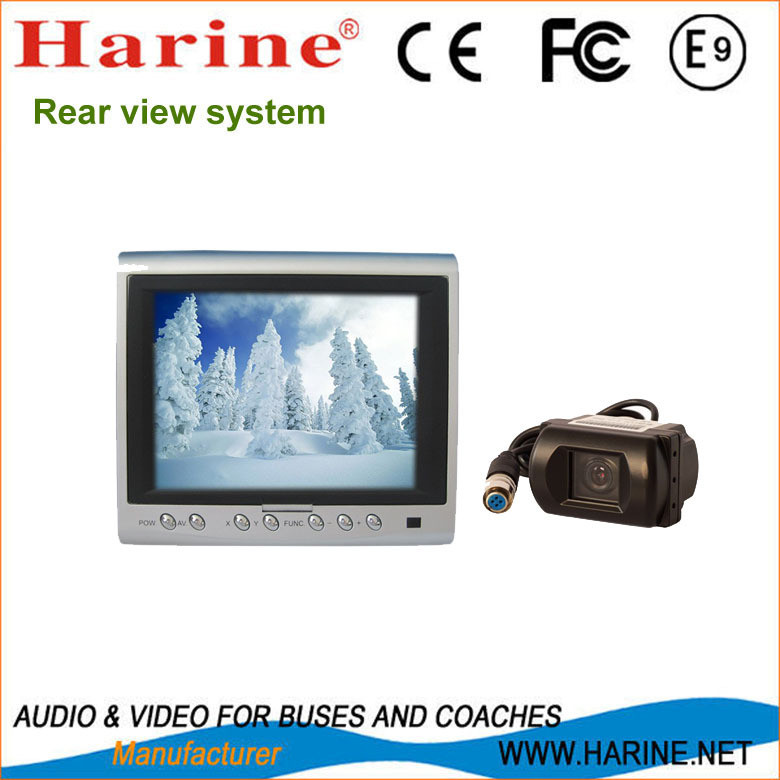

5.6 Inch Car Parking Sensor System with Rear View Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW, CIF

Payment Terms:L/C, T/T, Western Union

Trademark:Harine

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CS068A

Shell Material:Alloy

Probe Number:2

Display Type:LCD Matrix

Interface:Air Plug

Function:Night Vision

Definition:420TVL

Chip:CCD

Waterproof Grade:IP68

Probe Diameter:24mm

Screen Size:5.6"

Aspect Ratio:4:3

Resolution:960X234

Contrast Ratio:300:1

Brightness:250CD/M2

View Angle:U/D:50/70 L/R:70/70

Storage Temperature:-30-85

Power Supply:DC12V

Current Consumption:Less Than 5W

Product Dimension:L195 X W158 X H 105.5mm

Export Markets:Global

Additional Info.

Trademark:Harine

Packing:Harine Packing

Standard:ISO

Origin:Xiamen, Fujian Province, China

HS Code:854370

Production Capacity:3, 000PCS/ Month for Car Camera System

Product Description

Features of car camera system

5.6" wide screen
Auto switch to rear camera while reversing
Wide range of power supply (24V�20%)
3-CH video input (4-CH max)
Isolated power supply, high anit-inteference
Vehicle disturb shielding line and RS765-4 plug for sign transmit
Radar distance detect and alarm module for options

Product Description
Specifications of car camera system

Item	DC12V 5.6 inch 3-CH video input car camera system
Screen size	5.6 inch
Screen Ratio	4:3
Resolution	960 (H) �3(RGB)�234 (V)
Contrast	300:1
Brightness	250cd/m 2
View Angle	U:50/D:70 L/R:70
Backlight	LED
Color Standard	PAL/ NTSC Auto
Power Supply	DC 24V
Net Weight	580g
Operating Temperature	-20~70
Storage Temperature	-30~85
Power Consumption	less than 5 W

FAQ for car camera system

1. What is your MOQ for car camera system?
--- Our moq is 1 pcs. More quantity, the price is more competitive.

2. What is the warranty period of your car camera system?
--- Our bus monitor is about 1 year.

3. What is the package of car camera system?
--- Generally speaking, it is polyfoam+inner box+carton.

4. Could I customize as my request?
--- Yes. We can make customized as your special request.

DC12V 5.6 inch 3-CH video input car camera system

All inquiries will be replied within 24 hours. If any further question, pls contact us.
