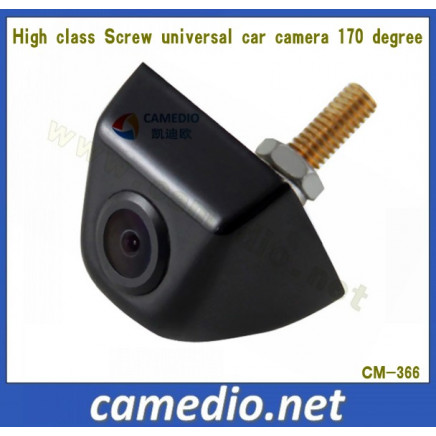

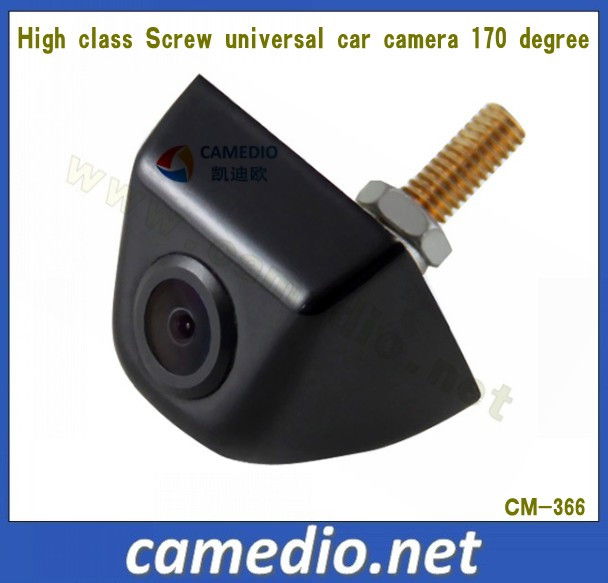

Black 170 Degree HD Car Rearview Camera Screw CMOS

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Money Gram, Western Union, Paypal

Trademark:CE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-366 black

Shell Material:Aluminium

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Waterproof

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Probe Diameter:18.8mm

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*28*32cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

1)New CMOS/CCD Reverse Backup Car Rear View Camera
Perfect for Car, SUV, Truck or Van

2)with color and day/night vision provide good picture on your screen.

3)waterproof design makes it built to last.

4) High class zinc alloy metal housing design

5)Installation is a breeze and it is compatible with most types of monitors.

Specification:
Image sensor: Color CMOS

TV system: NTSC/PAL

Effective pixels: 658 x 462 Pixels/628 x 586 Pixels

Sensing area: 5.961 x 4.276mm

Horizontal resolution: 480TVL

Shutter speed: 1/60-20us

Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led)

Lens Angle: 170°

White balance: Auto

Color: Black

Waterproof: IP67-IP68

Video output: 1.0Vp-p, 75ohm

Current Consumption: No More 300mA

Power supply: DC 12V

Operating Temperature: -20° C~ 60° C, RH95% Max.

Storage temperature: -30° C ~ 60° C, RH95% Max.

Video cable length: 6m

Power supply cable length: 1.5m

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC7070	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	720(H)*540(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
