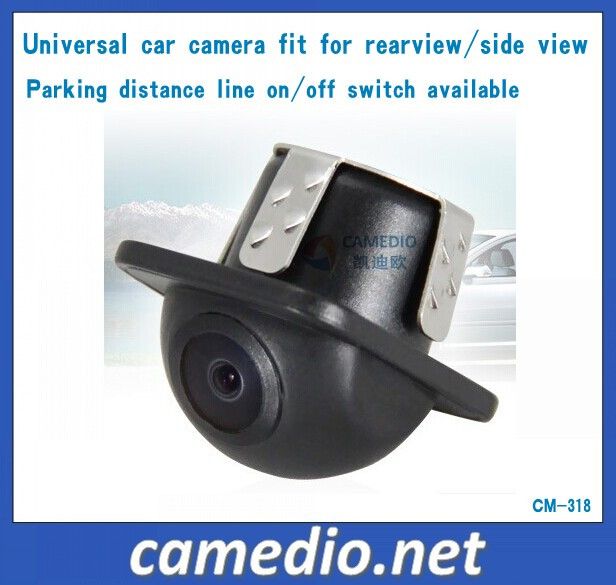

Universal Car Reverse Camera Fit for Reversing& Parking with 170 Wide View Angle&Waterproof

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Universal Car Reverse Camera Fit for Reversing& Parking with 170 Wide View Angle&Waterproof

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$7.9 - $8.8 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 8.8/ Piece
50.0	US $ 8.5/ Piece
900.0	US $ 7.9/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union, Paypal

Price Valid Time:From Nov 21, 2014 To Dec 24, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-318

Shell Material:ABS Plastic

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Waterproof

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Probe Diameter:18.8mm

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*28*32cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

1)Upside down car camera , rear view/side view camera

2) Wide viewing angles ,high quality image

3)both suit for rear view and side mirror view (mirror image without parking lines)

4)waterproof and day/night vision .

5) PC7070 480TV lines CMOS in default

6)Image sensors optional: PC1030 420TV lines CMOS, MT9V136 analog CCD, PC1089 CCD level

Specification:

Image sensor:Color CMOS
TV system:NTSC/PAL
Effective pixels:682 x 504 Pixels
Sensing area:5.961 x 4.276mm
Horizontal resolution:480TVL
Shutter speed:1/60-20us
Minimum illumination:0.2Lux/ F1.8=1.2 (0 Lux with Led)
Lens Angle:170°
White balance:Auto
Color:Black
Waterproof:IP67-IP68
Video output:1.0Vp-p, 75ohm
Current Consumption:No More 300mA
Power supply:DC 12V
Operating Temperature:-20°C~ 60°C, RH95% Max.
Storage temperature:-30°C ~ 60°C, RH95% Max.
Video cable length:6m
Power supply cable length:1.5m

Main features:

1, Universal Rearview Backup Camera
2, 170 Degree wide viewing angle
3, Die cast Metal housing
4, Small and compact design
5, Completely waterproof housing
6, Metal anti-theft bracket
7, Simple installation for installers
8, Low light sensitivity fo 0.5 Lux
9, Reverse image

10,Color: Black

11,Requires a 12V DC power supply

Technical Specifications:

1,TV Systems: NTSC/PAL
2, Image Sensors: Color CMOS
3,Total Pixels: 688*488
4, Resolution: 420 TV Lines
5, Lens: 2.8mm
6,Video Output: 1.0vp-p composite video at 75ohm
7, Power Supply: DC 9V-15V
8,Operating Temperature (Deg. C) -30o C~ +70o C
9,Water Proof, Anti-Shock

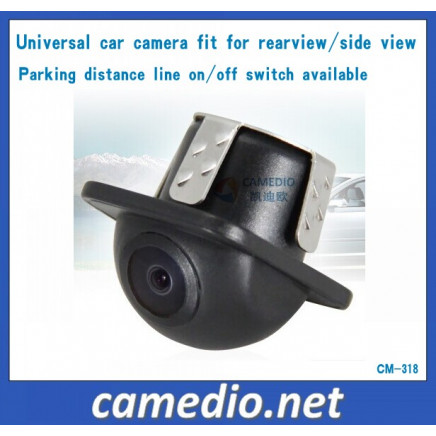

Universal Car Reverse Camera Fit for Reversing& Parking with 170 Wide View Angle&Waterproof

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	928(H)*500(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
