American USA Night Vision Car License Plate Frame Rearview Camera Cm-315b

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

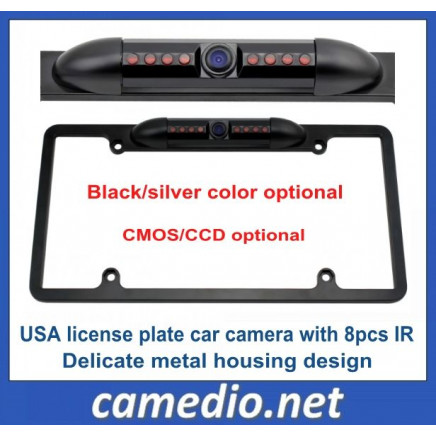

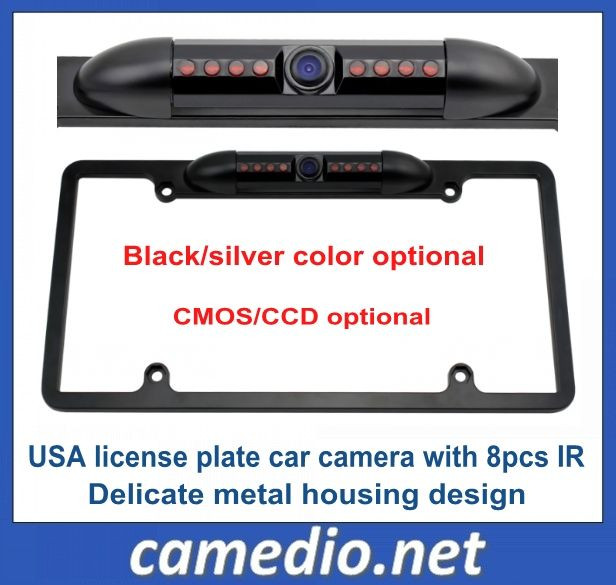

American USA Night Vision Car License Plate Frame Rearview Camera Cm-315b

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$17.98 - $19.2 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 19.2/ Piece
500.0	US $ 17.98/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union, Paypal

Price Valid Time:From Oct 31, 2014 To Jan 31, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-315

Shell Material:ABS Plastic

Probe Number:4

Interface:RCA

Function:Night Vision

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.0-0.3m

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

IR Lights:8

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:20PCS/Carton, Carton Size 58*31*50cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:20000PCS/Month

Product Description

1)Exquisite high cleass Zinc alloy shell design

2) Built in 8pcs IR for better night vision at night

3)Waterproof design , day/night vision

4)Black/silver housing avilable

5)4 Kinds of image sensors available

Specification:

Image device: PC1030
TV system: PAL/NTSC
Resolution: 420 TV lines
Effective pixels: 648*488 pixels
Sensing area: 4.08 mm *3.12 mm
Shutter speed: 1/60-1/5000
Video output: 1.0 VP-P, 75 OHM
Gamma consumption: 0.45
White balance: Auto
Scanning system: 2: 1 interlace
Lens angle: 135° /170°
Waterproof: IP67/68
Minimum illumination: 0.1 Lux/F=1.2(0 Lux with IR on)
Power supply: DC 12V
Operation temperature: -20° C - 75° C, RH 95% MAX
Storage temperature: -40° C - 85° C, RH 95% MAX

Image sensor :PC1089

Image sensor: PC1089
TV system : PAL/NTSC
Effective pixels: 765*652/520
Effective Image Area : 3.584 mm *2.688 mm
Max. Clock frequency : 54 MHz
SNR:?46.4 [dB]
Sensitivity : 9.67 [V/Lux.sec]
Minimum illumination:0.005 Lux/F=1.2(0 Lux with IR on)
Lens angle:170 degree
Resolution: 540 TV Lines
Shutter speed: 1/60-1/20000
Video output: 1.0Vp- 75?
AE control: Auto
Waterproof: IP67/68
Power supply: DC12V±10% 20mA±10%
Operating Temp. (Fully Functional Temp) : -20ºC-75ºC,RH 95% MAX
