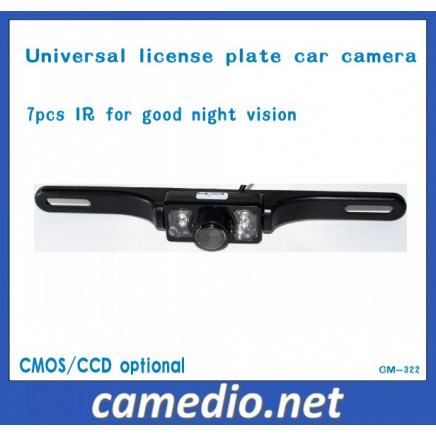

Waterproof IR Night Vision License Plate Rearview Car Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Money Gram, Western Union, Paypal

Trademark:CE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-322

Shell Material:ABS Plastic

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Night Vision

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:135 Degree

Sensor:PC7070/PC3030/Mt9V136/PC1089

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Work Voltage:12V

Warranty:12 Months

Export Markets:Global

Additional Info.

Trademark:CE

Packing:25PCS/Carton, Carton Size 43*28*30cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:20000PCS/Month

Product Description

1)This CMOS rear view Night Vision/Waterproof/Color camera can be connected to any type of monitor such as your in-car DVD player, Media player, navigation system with video input, or TFT rear view mirror using a composite yellow RCA jack for crystal clear resolution.

2) Builitin 7pcs IR for better night vision

3) Easy to install

Specification:

^{_{IR night vision license plate car camera}}

^{_{Image Pick-up Device PC1030/PC7070/PC3030/PC1089 (can choose)}}

^{_{Easy installation and very clear picture}}

^{_{Lens 2.8mm/120°}}

^{_{TV system PAL/NTSC(can choose)}}

^{_{Effective pixels PAL 628×586/NTSC 510×496}}

^{_{SensingArea 5.961mm×4.276mm}}

^{_{Horizontal Resolution 480 TV lines}}

^{_{Dimension 38mm(L)*41mm(W)*26mm(H)}}

^{_{Usable Illumination 2.26V/Lux-sec at 5600k}}

^{_{Video Output CCIR/EIA(PAL/NTSC)Standard Video Signal 1.0Vp-p 75ohm}}

^{_{Sync System Internal Synchronization}}

^{_{Power Supply DC8-12V 120mW}}

^{_{Reference line optional}}

^{_{Operation Temperature -20°C~+75°C(RH95%Max)}}

^{_{Storage Temperature -40°C~+85°C(RH95%Max)}}

^{_{Packing Color Box}}

Accessories:

6M AV cable*1

1.2M DC cable*1

screw*2

screw nut*2

product manual *1

color box*1

Installation Guides:

1. Get out the license light;

2. Get the rear view lens lines across the license light original position;

3. Fasten the camera with the buckle which place in the two sides of the camera;

4. Connect the lens built-in license light power lines to the original license light power lines;

5. Connect the reverse lens switching lines;

6. Connect the camera's signal line to the signal extension line;

7. Connect the car's reverse light line to camera's video cable;

8. Check if all lines are correct connected and arranged;

9. Debug the working effects of the camera and the license light;

10. Cover the car trunk. Finished.

Specifications for different image devices:

A. PC1030 (parking guide line)
Image device: PC1030	Resolution: 420 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Video output: 1.0 VP-P,75 OHM	Operation temperature: -20ºC - 70ºC,RH 95% MAX
Effective pixels: 648×488 pixels	Gamma consumption: 0.45	Storage temperature: -40 - 85,RH 95% MAX
Electronic Shutter : 1/60-1/5000	White balance: auto	Waterproof: IP67/68

B. MT9V136 (parking guide line)
Image device: MT9V136	Resolution: 480 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Video output: 1.0 VP-P,75 OHM	Operation temperature: -20ºC-70ºC,RH 95% MAX
Effective pixels: 720x576/480 pixels	Gamma consumption: 0.45	Storage temperature: -40ºC-85ºC,RH 95% MAX
Electronic Shutter: 1-1/10000	White balance: auto	Waterproof: IP67/68

C. PC1089 (parking guide line)
Image device: PC1089	Resolution: 520 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Dark Signal: 46.7 mV/sec @60ºC	Operation temperature: -40ºC-70ºC,RH 95% MAX
Effective pixels: 765×652 pixels	Sensitivity: 9.67 V/Lux.sec	DynamicRange: 63.7 dB
Scanning system: 2:1 interlace	Waterproof: IP 67/68	SNR: 46.4 dB

D. Color Sony CCD
Image device: 1/3 "Sony CCD	Resolution: 480 TV lines	Power supply: DC 12V
TV System: PAL/NTSC	Sensing Area: 4.9X3.7 mm	Horizontal Sync.Frequency: 15.625/15.734 KHz
Video Output: 1Vp-p,75Ohm	S/N ratio : Better than 48dB	Pin lens: F=1.9mm/F=2.0 mm
Waterproof: Ip67/68	Operating Temperature( o C): -20~+75(RH95% Max.)	Angle of view: 170 °
