Trunk Lid Handle Rear View Auto Camera for 12/13 New Focus Hatchback 2/Sedan 3

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Western Union, Paypal, Money Gram, Paypal

Trademark:CE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LS-T98

Shell Material:Alloy

Probe Number:4

Interface:RCA

Function:Waterproof

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.0-0.3m

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*29*30cm G. W: 9.8kg

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

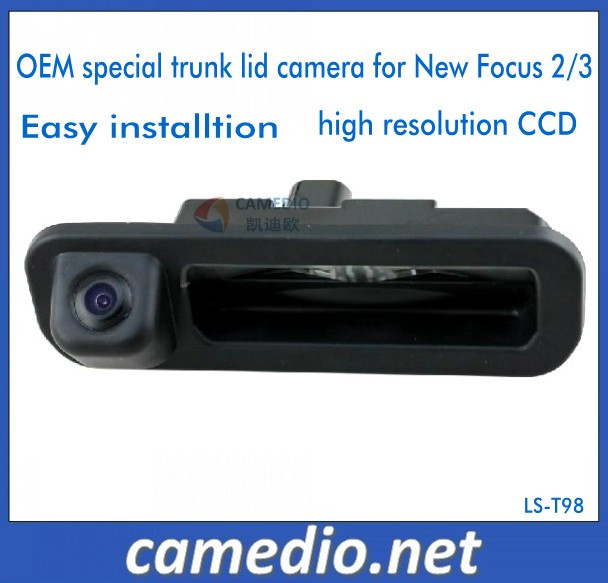

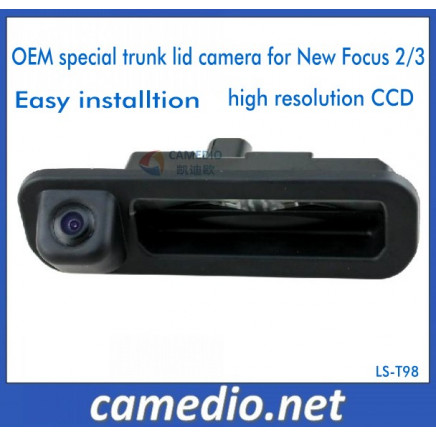

HD Waterproof Special Handle Car Camera for 12/13 New Ford Focus hatback/Sedan, Focus 2/3

Installed in the position of the cars's door handles, non-destructive installation.

1. Key features
Optional Chips (CMOS: PC1030/PC1089/MT9V136, etc; CCD: Sony CCD)
170 degrees angle of view
Wateproof IP 67/68
Optional parking guide lines for CMOS cameras
NTSC/PAL
Nondestructive installation, no damage to the car
6m video cable, 1.5m DC cable; Ordinary wires or with a small 4-pin connector (Please refer to pictures in Section 2)
Specification:
High resolution color image in low illumination enviroment
Multi-layer waterproof design, can be withstand
High-pressure water water washing and spaking High-definition, night vision, wide-angle 170 degree
Concealed installation under the license lamp
Visual warming reference line optional
Adaptive multi-brand DVD and display

Packaging & Delivery
Accessories: Video and DC wires, user manual
Neutral color box, dimension: 131X81X75MM, packaged weight about 220g, 40 pieces / carton
Lead time: 2-5 working Days for orders below ess than 1000 pieces; 1-2 weeks for large quantities.

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	720(H)*540(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
