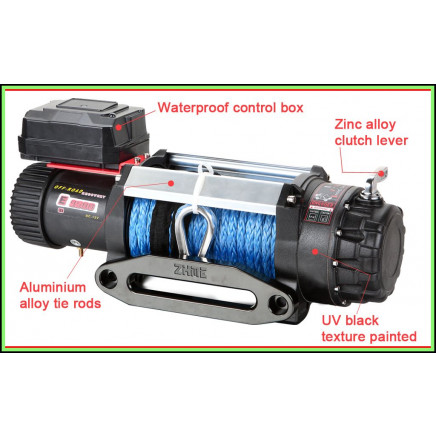

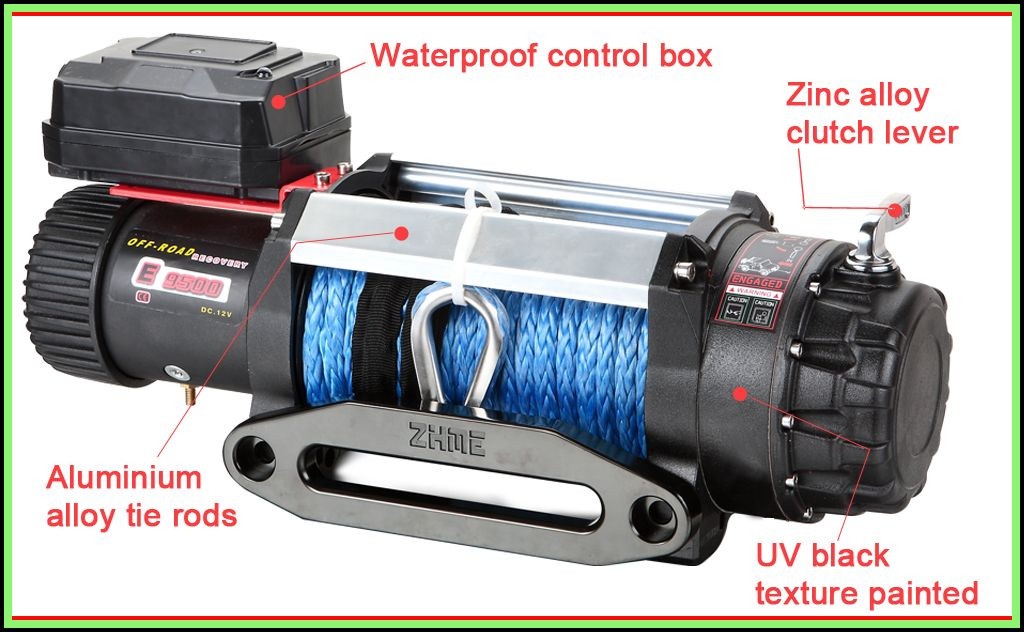

9500lbs Winch

More Views

9500lbs Winch

Be the first to review this product

More than 10 available

Availability: In stock

Price:$290.0 - $310.0 / Piece

Min. Order (Pieces)	Unit Price
15.0	US $ 310/ Piece
400.0	US $ 290/ Piece

Trade Terms: FOB

Payment Terms: L/C, T/T

Price Valid Time:From Jul 26, 2014 To Sep 14, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:9500lbs

Type:Electric Winch

Certification:CE

Brand:Zhme

Rated Line Pull:9500lbs(4310kgs)

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:6000PCS / Month

Product Description

Specification:

Rated line pull: 9500lbs (4310 kgs) Single line.
Motor: Seires Wound 6.0 HP/4.4 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 212: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: Synthetic rope 9.5mmX26m
Drum size: 2.5"X 9.0" ( 63mm X 224mm)
Dimensions: 23"X6.7"X8.4"(552mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 25 Square mm, 72" ( 1.83m)
N. W: 79lbs (36 kg)
Packing: 620mm X 200mm X 390mm / Carton

One 20 feet container covers 400 cartons, If need, Use pallets.

Accessories:
9500lbs Winch

Dimensions:
9500lbs Winch
