Concrete Machine Mixing Boom Pump in One Multi Function

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 69000.0-78000.0/ Piece

Price:$69000.0 - $78000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Apr 28, 2015 To Jul 27, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Mixing Boom Pump25/17

Horizontal Reach:17m

Boom Type:Z Folding Boom

Warranty:12 Months

Export Markets:South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia

Additional Info.

Trademark:TRUEMAX

Packing:Standard or According to Your Detailed Requirement

Origin:China

HS Code:8479109000

Production Capacity:10 Units/Month

Product Description

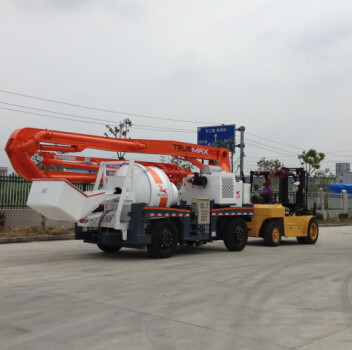

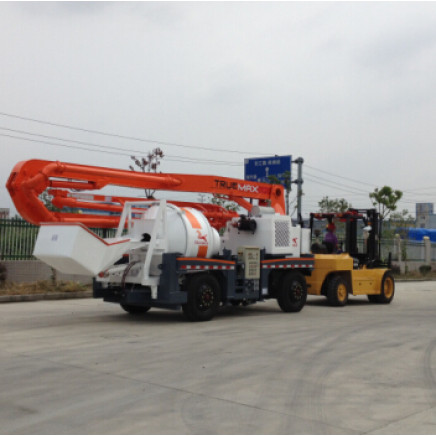

Truemax Concrete Mixing Boom Pump in Sudan

Mixing and pumping are completed by one operator. Boom movements are controlled by radio remote
controller. Reduce the labor and operate easily.Featured sliding rail connecting between mixing
and pumping is easily for maintenance and piston replacement.Optimal designed arc hopper provides
high efficiency suction of concrete.Mixing drums is gear driven which is reliable and won't slip.

1. Truemax Concrete Mixing Boom Pump combine the functions of pump and boom in one machine, which achieve the delivery and pouring of concrete to the building. It is easy to operate BC30DZ3 in a low cost of use.

2.Truemax Concrete Mixing Boom Pump can be operated by one operator and the movement of boom can be controlled in use of wireless remote control which may save labor and easy to operate.

3. Optimized arc-shaped hopper make a high inhalation rate.

4. Boom is slewed in tower rotation by hydraulic drive with 360° .

5. Standard configuration with wireless remote control make the operating more easy and convenient.

6. Main electronic components are word-famous brands

Model	MBP25/17
Max theoretical concrete conveying capacity	25m3/h
Max concrete pumping pressure	6mpa
System pressure	25mpa
Distributing valve form	S valve
Concrete cylinder size (diameter x stroke)	180mm*180mm
Hydraulic circuit type	Open circuit
Outlet diameter	?150mm
Inner diameter of the delivery pipe	?125mm
Diesel engine	Cummins
Engine power	74kw
Concrete hopper (volume×charging height)	0.6*1400m³xmm
Cooling way for hydraulic oil	Air cooling or water cooling
Max aggregate size	30mm
Max. Radius of Placing Boom	17m
Number of Boom Section	3
Length of Boom Section	6.6/5.6/4.8m
Slewing Range	360m
Length of End Hose	3m
Max theoretical mixing capacity	14m3/h
Mixer model	JZC350
Input capacity	560L
Output capacity	350L
Drum diameter	1440MM
Drum rotary speed	15rpm
Hopper hoisting time	6s
Hopper descending time	4s
Mixing time	45-60s
Mode of control	Cable control/Radio remote control
Max. trailer speed	15km/h
Tread distance	3200mm
Overall dimension (length x width x height)	730022803150mm
Weight	11000kg

Mixing and pumping are completed by one operator. Boom movements are controlled by radio remote
controller. Reduce the labor and operate easily.Featured sliding rail connecting between mixing
and pumping is easily for maintenance and piston replacement.Optimal designed arc hopper provides
high efficiency suction of concrete.Mixing drums is gear driven which is reliable and won't slip.

TRUEMAX provided and provides every day design, construction and installation of mixer and batching plants for some of the most important construction projects around the world, the product range includes a wide variety of solution of concrete machinery:
concrete batching plant
concrete truck mixer,
concrete placing boom,
concrete pump,
concrete line pump,
concrete truck-mounted pump.

Our Service
Faster speed of response of service
Modern transportation network of railway and aviation,
make sure that all spare parts got delivered in time.

Apart from supplying only the best quality products, we
also have available our technical and management solutions.
Our service teams always ready to provide
expertise to you. Truemax is ready to provide you with a full range of services.

Best service effect to win your
satisfaction and trust
We continue to work for guests providing customized
system solutions and provide best support and services.
Because of the formidable technical team, we have
provided high quality tour service to all guests.
