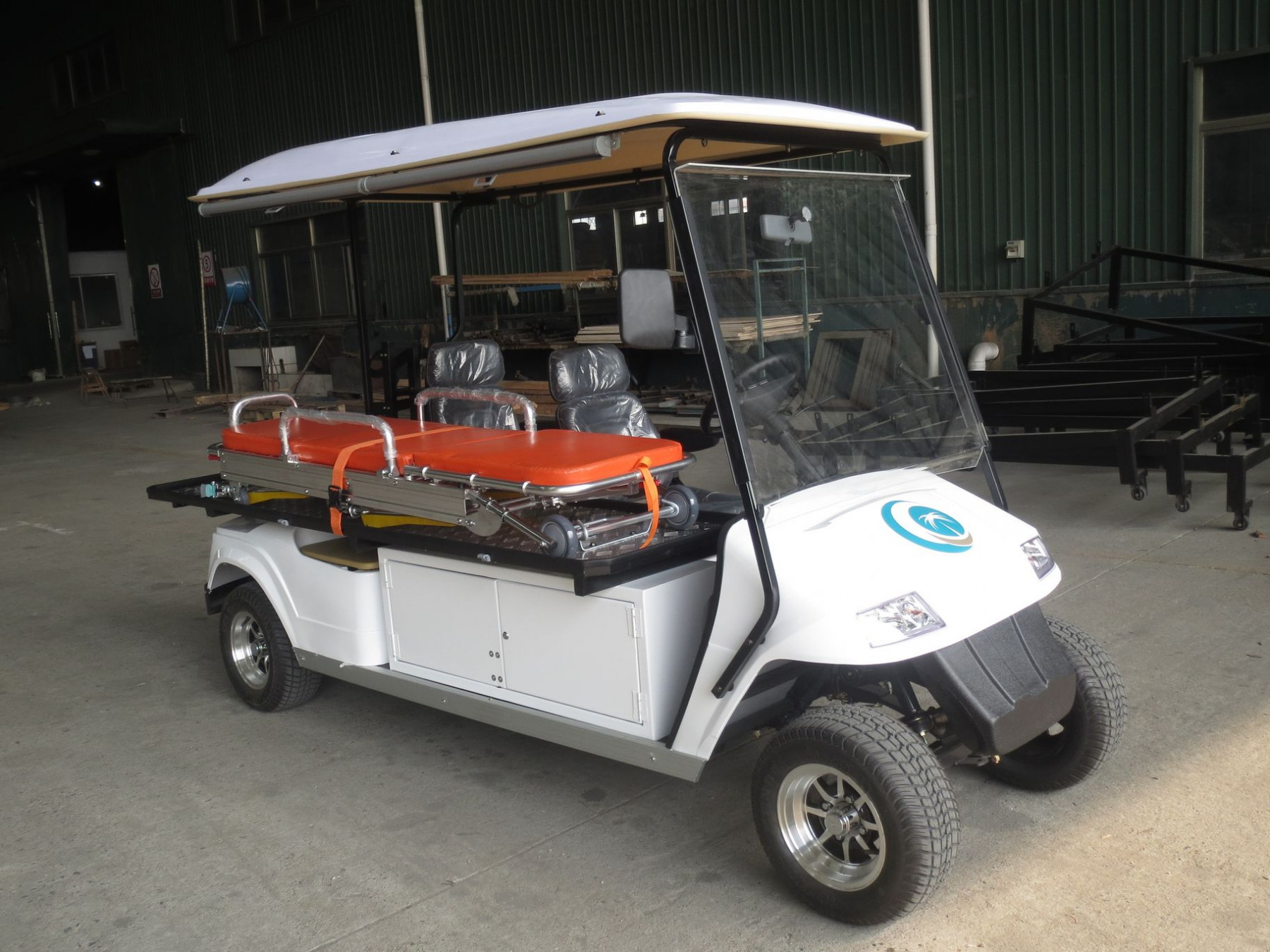

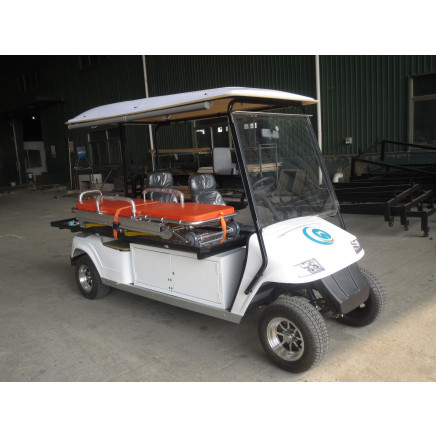

Electric Ambulance Car, CE Approved, 2 Seats, Eg2048tb1

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:Eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG2048TB1

Fuel:Electric

Certification:CE

Condition:New

Description:Electric Ambulance Car

Controller:Curtis 1268 (400A@2minutes)

Battery:8xt105(185ah@5hr Rate)

Motor:3.8kw Chinese Motor

Max. Loading Weight:480kgs

Net Weight:N/a

Overall Dimensions (Mm):3310X1180X1890mm (Not Exact)

Min. Ground Clearance (Mm):120

Frame:Welded Steel Framework with Phosphate+Electro-Coat

Stainless Steel Package:Including Front Upright, Rear Upright

Export Markets:Global

Additional Info.

Trademark:Eagle

Standard:CE

Origin:China

Production Capacity:2500 Per Month

Product Description

Company History
Founded in 1999, Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. is a leading manufacturer specializing in designing and manufacturing 4-wheel electric vehicles. Our company has a workshop area of 30,000 square meters and 400 workers. Our current daily production capacity is 100units per day, this can be adjusted with the order volume increasing.
Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China. In 2003, we were approved by ISO9001. In 2006, we were approved by WMI quality system to get our own VIN.

With effective management and specialized talents, our company is dedicated to offering top quality products with competitive price and first class after-sales service.

Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution! EV as a zero-emission-car can help improve the environment a lot;
secondly, decrease the cost! Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car. Based on calculation, for a 48V EV, it only consumes 2KWH electricity per 100kms. Cost is much lower than gasoline car.
Thirdly, energy independent! For a country that is lack of oil source, it should find a way to make it independent from oil. Water resource, sun resource and wind resource are potential alternative resource; the problem is to find a medium to storage the energy. Then battery will be the best choice at this moment.

Key Components
Battery	8xT105(185Ah@5hr rate)
Motor	3.8KW Chinese motor
Controller	Curtis 1268 (400A@2minutes)
Performance
Passenger capacity	2
Max. speed @12.76:1 gear ratio	32
Max. speed @10.26:1 gear ratio	40
Minimum turning radius (m)	4.5
Max. climbing ability (loaded) @ 12.76:1 gear ratio	20%
Max. climbing ability (loaded) @ 10.26:1 gear ratio	15%
Max. movement after brake at speed of 20km/h	?4m
Max. loading weight	480kgs
Net weight	N/A
Dimensions
Overall dimensions (mm)	3310X1180X1890mm (not exact)
Min. ground clearance (mm)	120
Wheelbase (mm)	1700
Front wheel tread (mm)	855
Rear wheel tread (mm)	975
Body and Frame
Frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	FRP
Windshield	one-piece Organic glass
	Windshield, hinged
	laminated windshield
	laminated windshield with wiper
Stainless steel package	including front upright, rear upright
Seats	Black
Floor	rubber
Beverage holders	4 cups drink holders
Glove box door (include two locks) in black plastic	2 doors per set
Glove box door (include two locks) in wood finish (inside and outside)	2 doors per set
Side trim	Aluminum
Side trim	Stainless steel
Score card holder	on steering wheel
Inner rear view mirror	1 piece per cart in the middle of the windshield
Side rear view mirror	Two pieces per cart
Battery watering system,48V system	without water supply tool
Battery watering system,36V system	without water supply tool
Manual Pump	water supply tool (other water supply tools are available)
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn.
Meter(only available for 48V system)	speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator
12V accessory plug	to be mounted on the dashboard
Solar Panel	48V, 185W
Charger	China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Charger	On-board charger, input 85V~265V, 45~65Hz, output 48V/18A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
	4-wheel hydraulic brake + hand brake
	4-wheel hydraulic brake, front disc brake, rear drum brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.76:1
Rear axle	Integrated, Gear ratio 10.26:1
