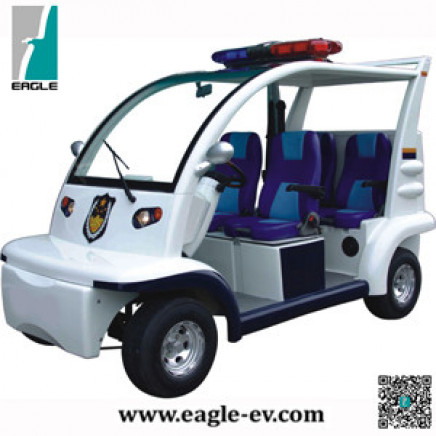

Electric Car for Security Patrol, Eg-6043p

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Electric Car for Security Patrol, Eg-6043p

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:Eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG6043P

Fuel:Electric

Certification:CE

Condition:New

Description:Electric Car for Security Patrol

Controller:Curtis Controller, 275A-400A, Imported From USA Di

Motor:4kw-5kw (5.4HP-6.8HP), Chinese Brand or ADC Brand

Battery:Trojan Battery, T105+, Importedfrom USA Directly

Charger:High Frequency Onboard Charger

Range (Loaded) (Km)*:up to 105

Max.Speed (Km/H):up to 40

Max.Climbing Ability(Loaded):up to 25%

Max.Loading Weight (Kgs):370

Overall Dimensions (Mm):3060X1400X1900 (Lxwxh)

Export Markets:Global

Additional Info.

Trademark:Eagle

Standard:CE

Origin:China

Production Capacity:2500 Per Month

Product Description

Company History
Founded in 1999, Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. is a leading manufacturer specializing in designing and manufacturing 4-wheel electric vehicles. Our company has a workshop area of 30,000 square meters and 400 workers. Our current daily production capacity is 100units per day, this can be adjusted with the order volume increasing.
Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China. In 2003, we were approved by ISO9001. In 2006, we were approved by WMI quality system to get our own VIN.

With effective management and specialized talents, our company is dedicated to offering top quality products with competitive price and first class after-sales service.

Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution! EV as a zero-emission-car can help improve the environment a lot;
secondly, decrease the cost! Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car. Based on calculation, for a 48V EV, it only consumes 2KWH electricity per 100kms. Cost is much lower than gasoline car.
Thirdly, energy independent! For a country that is lack of oil source, it should find a way to make it independent from oil. Water resource, sun resource and wind resource are potential alternative resource; the problem is to find a medium to storage the energy. Then battery will be the best choice at this moment.

Key Components

Item	Description
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated power 4KW-5KW (5.4HP-6.8HP), Chinese brand or ADC brand
Battery	Trojan battery, T105+, imported from USA directly
Charger	High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	4
Range (loaded) (km)*	up to 105
Max.speed (km/h)	up to 40
Min.turning radius (m)	4
Max.climbing ability(loaded)	up to 25%
Max. movement after brake at speed of 20km/h	?4m
Max.loading weight (kgs)	370
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	3060x1400x1900 (LxWxH)
Min.ground clearance (mm)	155
Wheelbase (mm)	2080
Front wheel tread (mm)	1210
Rear wheel tread (mm)	1160

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with sand blasting and painting
Body	FRP and Plastic
Roof	FRP with steel frame, with roof handle
Windshield	Laminated glass with wiper
Roof supports	Plastic
Seat	Reborn sponge with artificial leather, high back, with adjustable armrest
Rear storage box	Plastic, with lock
Seatbelt	3-point type
Floor	Bamboo floor with Skidproof leather
Dashboard	FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc..
Side rear view mirror	2pcs

Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	including switch for headlight, turning light, wiper and horn
Police light system	with siren and microphone
DC/DC converter	48V/12V
Digital Meter	with Current meter, voltometer, speedometer, odometer and various indicators
Audio system	Radio with MP3 receiver and 2 waterproof speaker

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Independent suspension
Rear suspension	integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Aluminum differential case, 12.76:1 gear ratio
Wheel & Tyre	225/55b12 6PR tire, 12X7 aluminum wheel
