Key Components |
|
Controller |
Curtis controller, 275A-400A, imported from USA directly |
|
Motor |
Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand, Both DC motor and AC motor are available |
|
Battery |
Trojan battery, T875 or T105+, imported from USA directly |
|
Charger |
High Frequency onboard charger, (input 90V-265V, 47-63HZ, output 48V/22A, 36V, 25A) |
|
Performance |
|
Passenger Capacity |

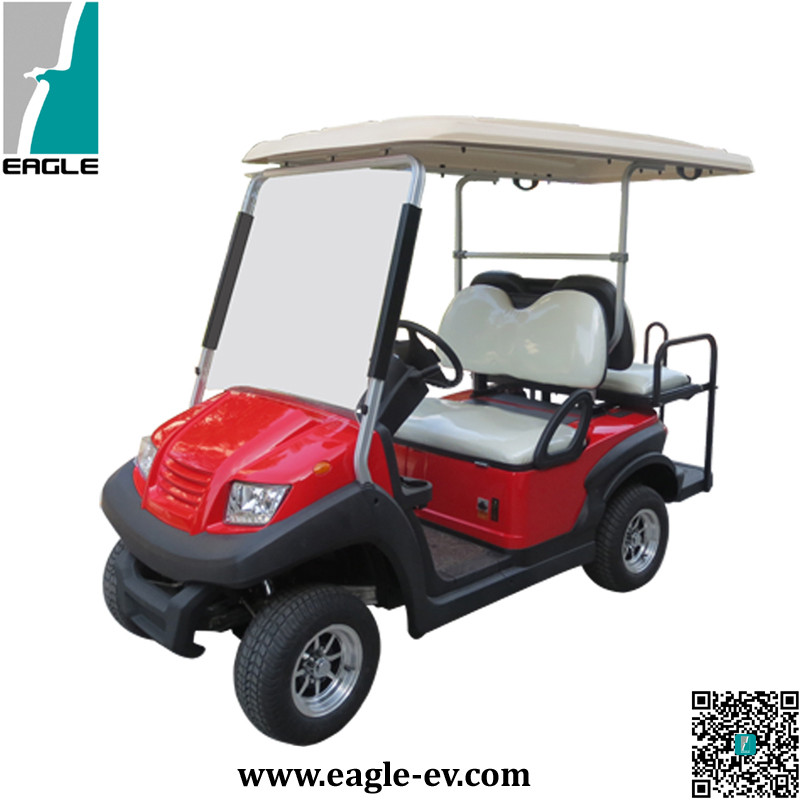

4 (2 seats facing forward and 2 seats facing backward) |
|
Range (loaded) (km)* |
up to 100 |
|
Max. speed (km/h) |
up to 40 |
|
Min. turning radius (m) |
3 |
|
Max. climbing ability(loaded) |
up to 25% |
|
Max. movement after brake at speed of 20km/h |
? 4m |
|
Max. loading weight (kgs) |
370 |
|
Charging time (hour) |
8 to 10 hours |
|
Battery lifespan (cycles) |
750 |
|
Dimensions |
|
Overall dimensions (mm) |
2920x1180x2050 (LxWxH) |
|
Min. ground clearance (mm) |
120 |
|
Wheelbase (mm) |
1680 |
|
Front wheel tread (mm) |
1010 |
|
Rear wheel tread (mm) |
1010 |
|
Body and Frame |
|
Frame & Chassis |
Aluminum alloy beam, bended |
|
Body |
PP plastic front and rear body cover, injected |
|
Roof |
Plastic |
|
Windshield |
One-piece organic glass (PMMA) |
|
Roof supports |
Aluminum with black powder coating |
|
Cushion |
Reborn sponge with artificial leather and plastic bottom cover |
|
Backrest |
Reborn sponge with artificial leather and plastic cover |
|
Armrest |
Plastic, black texture finish |
|
Floor mat |
Skidproof rubber |
|
Golf bag holder |
Plastic support with nylon strap |
|
Dashboard |
Black plastic, with F/R switch, battery power indicator, ignition key on it |
|
Beverage holders |
4 cups holders, 2 each side |
|
Side trim |
Plastic, black |
|
Rear standing board |
Metallic frame with plastic cover |
|
Score card holder |
On the steering wheel |
|
Electric System |
|
Lights |
12V, headlight (with hight/low beam), front turning light, LED front position light, LED taillights (includes brake lights and turning light), |
|
Horn |
Electric horn, 12V |
|
Reverse buzzer |
Electric, 12V |
|
Combination switch |
\ |
|
DC/DC converter |
36V/12V, 48V/12V |
|
Digital Meter (optional) |
Including speedomter, mileage, various indicators including: headlight indicator, turning light indicator, parking indicator, emergency light indicator, reverse indicator |
|
Steering & suspersion |
|
Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
|
Brake System |
Rear wheel mechanical brake with hand park brake |
|
Accelerator |
Holzer type, stepless speed change |
|
Front suspension |
Double-arm, independent suspension |
|
Rear suspension |
Taper leaf spring with hydraulic cylinder shock absorber |
|
Driving model |
Rear axle two stage deceleration, motor direct driving |
|
Rear axle |
Aluminum differential cage, integrated, 12.76: 1 gear ratio |
|
Wheel & Tyre |
10x6 Alumimum wheel & 205/50-10 4PR |
