Electric Utility Car, CE Approved, with Cargo Box, Eg6042kdx

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:Eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG6042KDX

Fuel:Electric

Certification:CE

Condition:New

Description:Electric Utility Car

Battery:Deep Cycle, Lead Acid Battery, Trojan Brand, Impor

Motor Power:3.8kw/5kw DC, 4kw AC

Controller:Curtis Brand, Separate/Series Excited, Imported

Overall Dimensions (Mm):3050X1400X1800

Charger:Input 110V-240V~50Hz-60Hz, Output 48V, 25A

Brake System:4-Wheel Hydraulic Brake + Foot Activated Parking B

Wheel & Tyre:20.5X8.0-10 Tire, 6j-10 Steel Wheel, Wheel Cap

Max. Climbing Ability:20%

Max. Speed(Km/H):32/40 Depends on DC/AC

Export Markets:Global

Additional Info.

Trademark:Eagle

Packing:Cargo Box

Standard:CE

Origin:China

Production Capacity:1000 Per Month

Product Description

Company History
Founded in 1999, Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. is a leading manufacturer specializing in designing and manufacturing 4-wheel electric vehicles. Our company has a workshop area of 30,000 square meters and 400 workers. Our current daily production capacity is 100units per day, this can be adjusted with the order volume increasing.
Our company has gotten the unique production license for electric vehicle by the Supervision Bureau of Quality and Technology of China. In 2003, we were approved by ISO9001. In 2006, we were approved by WMI quality system to get our own VIN.

With effective management and specialized talents, our company is dedicated to offering top quality products with competitive price and first class after-sales service.

Why EV?
There should be at least three reasons for EV:
Firstly, decrease pollution! EV as a zero-emission-car can help improve the environment a lot;
secondly, decrease the cost! Though the initial buy cost of EV is higher than gasoline car, the maintenance cost of EV will be extremely lower than gasoline car. Based on calculation, for a 48V EV, it only consumes 2KWH electricity per 100kms. Cost is much lower than gasoline car.
Thirdly, energy independent! For a country that is lack of oil source, it should find a way to make it independent from oil. Water resource, sun resource and wind resource are potential alternative resource; the problem is to find a medium to storage the energy. Then battery will be the best choice at this moment.

Electric Utility Car

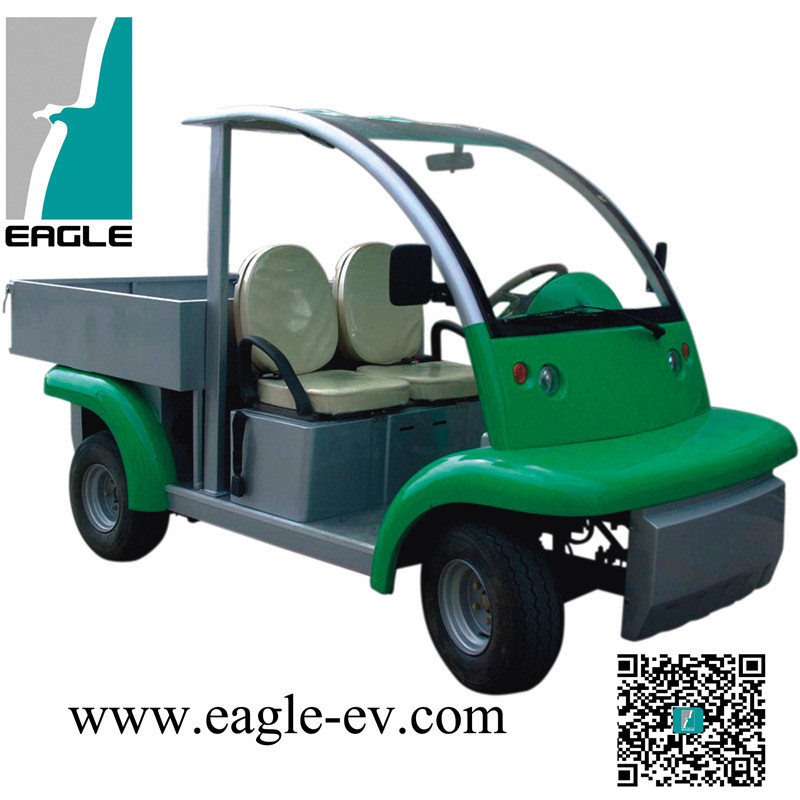

EG6042KDX is one of our electric utility car with cargo box, it's built based on electric passenger car EG6042K by removing the rear seats and adding a cargo box there, in the same time, cut the roof shorter to make it convenient to take in and out cargos to/from the cargo box. This car can be used hotel, resort, village, garden, park, campus, airport, statation, big factory, ranch,etc.for maintenance purpose or cargo carrying purpose! Below is the main specification:

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3.8KW/5KW DC, 4KW AC
Controller	Curtis brand, Separate/Series excited, imported
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)	>70-90 depends on DC/AC system setting
Max. speed(km/h)	32/40 depends on DC/AC system setting
Minimum turning radius (m)	4
Max. climbing ability	20%
Max. loading weight	360kgs
Rear box dimensions (mm)	1200x1080x250
Overall dimensions (mm)	3050x1400x1800
Ground Clearance (mm)	140
Body and Frame
Frame	Welded steel framework with sand blasting+paint treatment
Body	Fibreglass
Roof	FRP
Windshield	Laminated
Large Seats:	Sponge + artificial leather
Rear box	Carbon steel, with foldable side fender
Floor	Bamboo board+ rubber
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Dashboard meter	current meter, battery power meter, speedometer
Audio system	CD player (12v)(including 2 water-proof speakers, wired microphone)
Charger	input 110V-240V~50Hz-60Hz, output 48V, 25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker rocker compensating function
Brake system	4-wheel hydraulic brake + foot activated parking brake
Drive mode	Rear axle two stage deceleration, motor direct driving
Front Suspension system	Independent suspension, helix spring + shock absorber
Rear Suspension system	rear plate spring + shock absorber
Wheel & Tyre	20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap
Color
Body Color	5 standard color: Pure white/Pure Black/Pearl Red/Sapphire Blue/Greece Yellow/Lake Green
Seat Color	White and Tan
Others
Provides various options like: CD player, Solar panel, seatbelt, aluminum rim, enclosure, storage box, etc..

Additional Information
