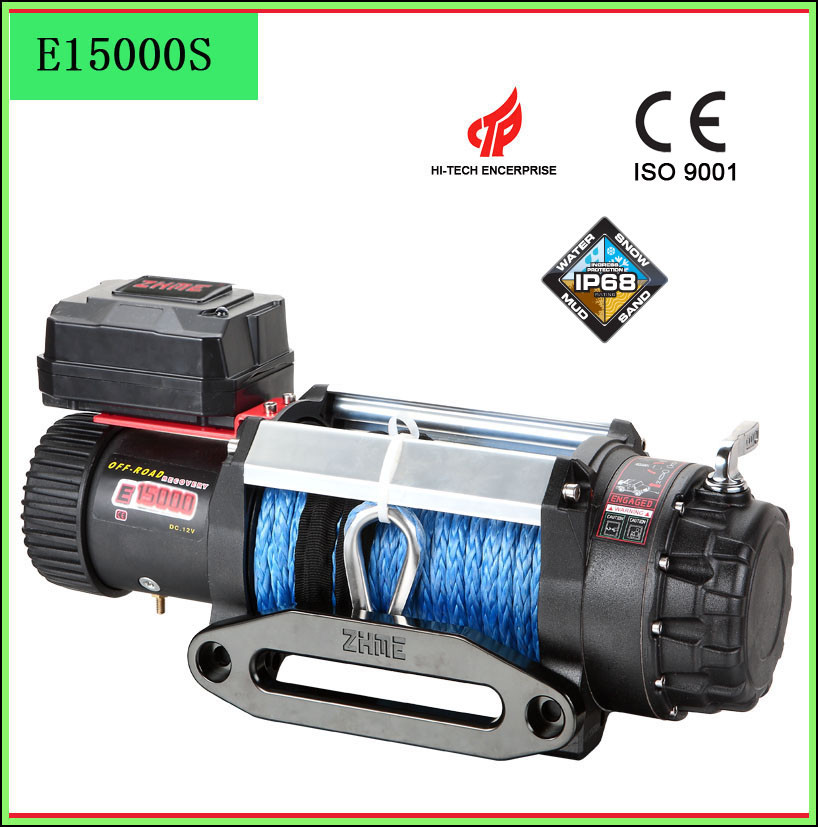

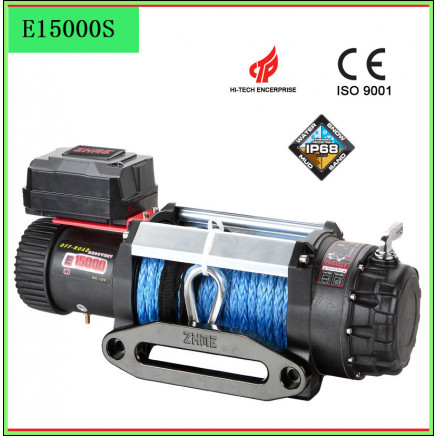

Electric Winch E15000s Lbs

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$300.0 - $500.0 / Piece

Min. Order (Sets)	Unit Price
30.0	US $ 500/ Piece
400.0	US $ 300/ Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 07, 2015 To Jul 07, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:E15000S LBS

Type:Electric Winch

Power Type:Series Motor DC

Pull Direction:Forward

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Applicable Environment:Swamp

Certification:CE

V:12V

Export Markets:Global

Additional Info.

Trademark:ZHME

Packing:Strong Carton Box, Optional Pallets

Standard:CE

Origin:Ningbo, China

HS Code:84253190

Production Capacity:1000PCS / Month

Product Description

Rated line pull: 15000lbs (6804 kgs) Single line.
Motor: Seires Wound 6.8 HP/5.0 kw, 12V DC.
Gear Train: 3 Stage Planetary
Gear Ratio: 262: 1
Clutch Sliding Ring Gear
Braking action: Automatic in the drum
Fairlead: 4-way Roller Fairlead
Rope: 12mmX26m
Drum size: 3.0"X 9.0" ( 76mm X 224mm)
Dimensions: 23. "X6.7"X8.4"(584mm X 170mm X 214mm)
Mounting bolt pattern: 10" X 4.5" ( 254mm X 114.3mm)
Battery: Recommended 650 CCA minimum for winching 32 Square mm, 72" ( 1.83m)
N. W: 88lbs (40 kg)
Packing: 640mm X 100mm X 210mm / Carton

One 20 feet container covers 350 cartons, If need, Use pallets.
