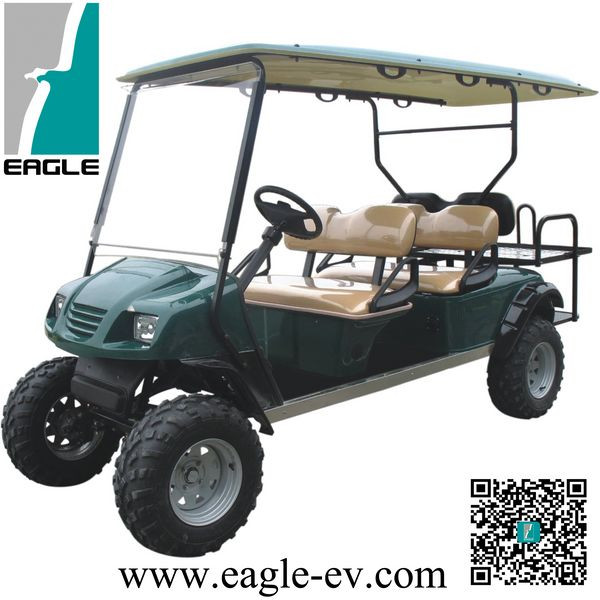

Modern Designed Electric Hunting Golf Cart, Eg2040asz

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Modern Designed Electric Hunting Golf Cart, Eg2040asz

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T

Trademark:eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG2040ASZ

Type:Buggy/Golf Carts

Seats:6

Power:4kw

Power Fuel:Electric

Maximum Speed:>30 km/h

Gradeability:20-30%

Suitable for:Golf Course

Certification:CE

Voltage of Battery:48V

Color:Red,White,Black,Green,Blue,Yellow

Range:up to 60 Km

Max Speed:40km/H

Overall Dimensions (Mm):3500X1340X2100 (Lxwxh)

Max Climbing Ability:20%

Max Loading Weight:480kgs

Motor Power:4kw-5kw

Battery:Trojan Battery, T105+

Controller:Curtis Controller

Charger:High Frequency Onboard Charger

Description:Modern Designed Electric Golf Cart

Export Markets:Global

Additional Info.

Trademark:eagle

Packing:Assembly or CKD

Standard:CE certificate

Origin:Made in China

HS Code:8703101900

Production Capacity:2500 Units Each Month

Product Description

Hunting electric golf carts with 6 seats
Model: EG2040ASZ

Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated 4KW-5KW (5.44HP-6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	6 (4 seats facing forward, 2 seats facing backward)
Range (loaded) (km)*	up to 60
Max.speed (km/h)	up to 40
Min.turning radius (m)	4.5
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	?4m
Max.loading weight (kgs)	480
Charging time (hour)	8-10
Battery lifespan (cycles)	750

Dimensions

Item	Description
Overall dimensions (mm)	3500x1340x2100 (LxWxH)
Min.ground clearance (mm)	150
Wheelbase (mm)	2440
Front wheel tread (mm)	850
Rear wheel tread (mm)	975

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front and rear body cover, injected
Roof	FRP (6P roof)
Windshield	One-piece organic glass (PMMA)
Roof supports	Carbon steel, powder coated, black
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Formed
Floor mat	Skidproof rubber
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders	4 cups holders, 2 big and 2 small
Side trim	Extruded aluminum
Rear standing board	Steel place with powder coating treatment
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	48V/12V

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	Rear wheel mechanical brake with foot park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Cylinder hydraulic shock absorber and leaf spring
Rear suspension	Cylinder hydraulic shock absorber and leaf spring
Driving model	Rear axle two stage deceleration, motor direct driving
Rear axle	Steel differential cage, integrated, 12.49:1 gear ratio
Wheel & Tyre	10x8 Steel wheel & 22x11-10 tyre

Option Accessories
To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	Hinged windshield	11	Enclosure
2	Laminated windshield with wiper	12	Digital meter
3	2-point seatbelt	13	12V plug
4	Backrest cover in wood finish	14	Hour meter
5	Steering wheel in wood finish	15	Battery watering pipe
6	Inner rear view mirror	16	Water pump (handle)
7	Front steel bumper	17	4-wheel hydraulic drum brake with hand park brake
8	Front basket	18	10x8 aluminum rim with 22x11-10 tyre
9	Wooden finish dashboard	19	12x7 steel rim with 24x8-12 tyre
10	Glove box with door and lock	20
