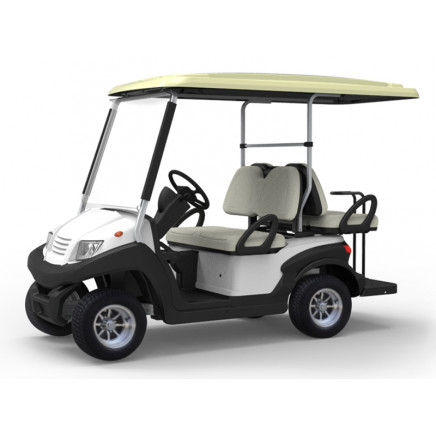

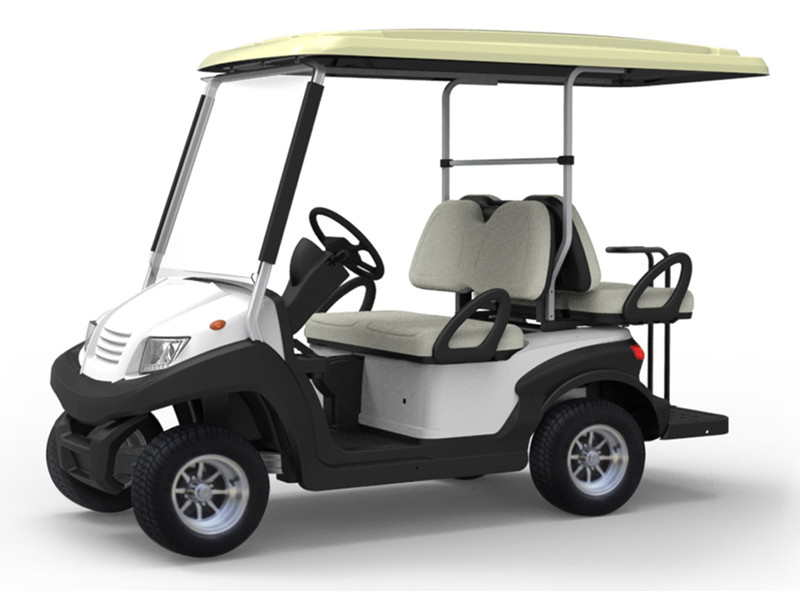

Utility Vehicles Based Golf Cart with Rear Jumper Seat

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DDP, CIP

Payment Terms:L/C, T/T

Trademark:eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG202AKSF

Type:Buggy/Golf Carts

Seats:3-4

Power:4000W

Power Fuel:Electric

Maximum Speed:>30 km/h

Gradeability:20-30%

Suitable for:Villa

Certification:CE

Voltage of Battery:48V

Color:6 Colors for Choose

Description:Utility Vehicle

Controller:Curtis Brand

Battery:Trojan Brand, Lead Acid

Charger:Hf Onboard Charger

Chassis:Aluminum

Export Markets:Global

Additional Info.

Trademark:eagle

Packing:Steel Crate

Standard:CE

Origin:China

HS Code:8703900010

Production Capacity:20000 Units Per Year

Product Description

Utility vehicle EG202AKSF is a golf cart with rear jumper seat, it's Suzhou Eagle's new model lauched in 2014. It has many features as follows
1. ) aluminum roof supports
2, ) aluminum chassis frame
3. )independent front suspension and rear taper leaf spring
4. ) EM brake
5. ) LED lights
6. ) Digital meter with various indicators
7.) Lockable and adjustable steering column

Key Components
Controller	Curtis controller, 275A-400A, imported from USA directly
Motor	Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand, Both DC motor and AC motor are available
Battery	Trojan battery, T875 or T105+, imported from USA directly
Charger	High Frequency onboard charger, (input 90V-265V, 47-63HZ, output 48V/22A, 36V, 25A)
Performance
Passenger Capacity	4 (2 seats facing forward and 2 seats facing backward)
Range (loaded) (km)*	up to 100
Max. speed (km/h)	up to 40
Min. turning radius (m)	3
Max. climbing ability(loaded)	up to 25%
Max. movement after brake at speed of 20km/h	? 4m
Max. loading weight (kgs)	370
Charging time (hour)	8 to 10 hours
Battery lifespan (cycles)	750
Dimensions
Overall dimensions (mm)	2920x1180x2050 (LxWxH)
Min. ground clearance (mm)	120
Wheelbase (mm)	1680
Front wheel tread (mm)	1010
Rear wheel tread (mm)	1010
Body and Frame
Frame & Chassis	Aluminum alloy beam, bended
Body	PP plastic front and rear body cover, injected
Roof	Plastic
Windshield	One-piece organic glass (PMMA)
Roof supports	Aluminum with black powder coating
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Plastic, black texture finish
Floor mat	Skidproof rubber
Golf bag holder	Plastic support with nylon strap
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders	4 cups holders, 2 each side
Side trim	Plastic, black
Rear standing board	Metallic frame with plastic cover
Score card holder	On the steering wheel
Electric System
Lights	12V, headlight (with hight/low beam), front turning light, LED front position light, LED taillights (includes brake lights and turning light),
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\
DC/DC converter	36V/12V, 48V/12V
Digital Meter (optional)	Including speedomter, mileage, various indicators including: headlight indicator, turning light indicator, parking indicator, emergency light indicator, reverse indicator
Steering & suspersion
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	Rear wheel mechanical brake with hand park brake
Accelerator	Holzer type, stepless speed change
Front suspension	Double-arm, independent suspension
Rear suspension	Taper leaf spring with hydraulic cylinder shock absorber
Driving model	Rear axle two stage deceleration, motor direct driving
Rear axle	Aluminum differential cage, integrated, 12.76: 1 gear ratio
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
