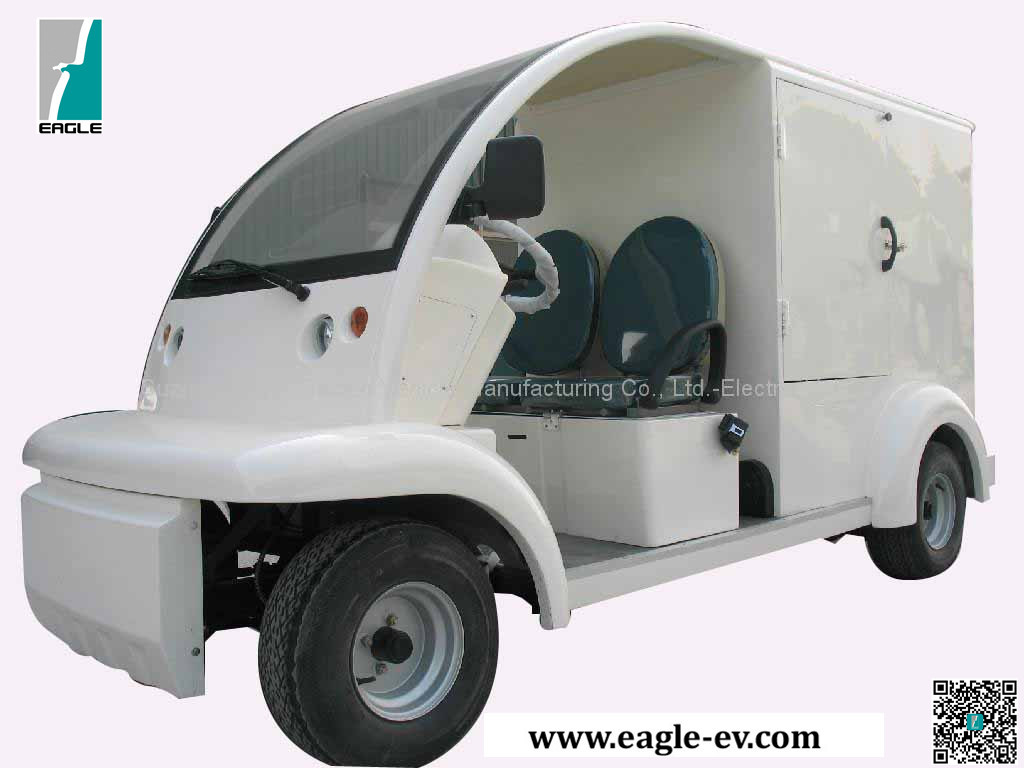

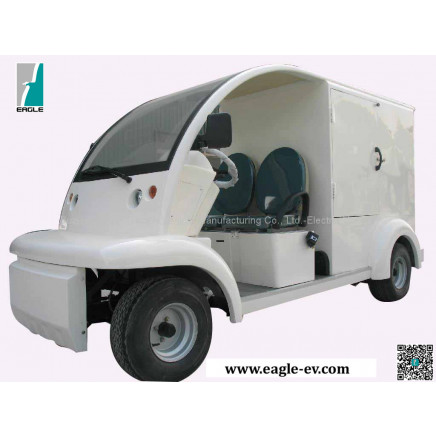

Electric Dining Car (Room Service Car) CE Approved, Eg6062kxc

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Trademark:Eagle

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:EG6062KXC

Description:Electric Dining Car

Motor Power:3.8kw/5kw DC or 3.8kw AC

Passenger Capacity:2

Overall Dimensions (Mm):3750X1400X1810

Rear Box Dimensions(Mm):1250X1270X1060

Battery:Lead Acid Battery, Trojan Brand

Charger:Input 110V-240V~50Hz-60Hz

Controller:Curtis Brand, Separate

Max. Speed(Km/H):32/40(AC)

Max. Loading Weight:400kgs

Export Markets:Global

Additional Info.

Trademark:Eagle

Packing:Cargo Box

Standard:CE

Origin:China

Production Capacity:1000 Per Month

Product Description

EG6062KXC is built based on EG6062K by closed box in the rear. It's ideal electric dinning car for using in hotel, resort, village, etc. For carrying food, beverage and other stuff. Because of its characteristics of no noise, no pollution which makes it more suitable for using in those luxurious area where people want to release themselves there! Below is the general specification: Electric Dining Car (Room Service Car) CE Approved, Eg6062kxc

Battery	Deep cycle, lead acid battery, Trojan brand, imported
Motor Power	3.8KW/5KW DC or 3.8KW AC
Controller	Curtis brand, Separate/Series excited, imported
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)	>70-90km depends of DC/AC system setting
Max. speed(km/h)	32/40(AC)
Minimum turning radius (m)	4
Max. climbing ability	20%/25%(5KW motor)
Max. loading weight	400kgs
Rear box dimensions(mm)	1250x1270x1060
Overall dimensions (mm)	3750X1400X1810
Ground Clearance (mm)	140
Body and Frame
Frame	Welded steel framework with sand blasting+paint treatment
Body	Fibreglass
Roof	FRP
Windshield	Laminated
Large Seats:	Sponge + artificial leather
Floor	Bamboo board+ rubber
Rear box	Steel and FRP are both available
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Dashboard meter	current meter, battery power meter, speedometer
Audio system	Tape player with radio (12v)(including 2 water-proof speakers, wired microphone)
Charger	input 110V-240V~50Hz-60Hz, output 48V, 25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker rocker compensating function
Brake system	4-wheel hydraulic brake + foot activated parking brake
Drive mode	Rear axle two stage deceleration, motor direct driving
Front Suspension system	Independent suspension, helix spring + shock absorber
Rear Suspension system	rear plate spring + shock absorber
Wheel & Tyre	20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap
Color
Body Color	5 standard color: Pure white/Pure Black/Pearl Red/Sapphire Blue/Greece Yellow/Lake Green
Seat Color	White and Tan
Others
Provides various options like: CD player, Solar panel, seatbelt
