Zoomlion 35 Ton New Truck Cranes (QY35V532)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Sets)	Unit Price
1.0	US $ 1000/ Set

Price:US $1000.0 / Set

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Mar 10, 2015 To Jun 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QY35V532

Type:Bridge Crane

Application:Construction Usage

Tower Crane Type:Slewing Tower Crane

Sling Type:Chain

Main Girder Form:Double Girder

Power Source:Hydraulic

Moving Type:Orbital

Certification:ISO9001: 2000, CE

Condition:New

Brand Name:Zoomlion

Max. Lifting Capacity:35 Ton

Export Markets:Global

Additional Info.

Trademark:Zoomlion

Packing:Nude

Standard:CE

Origin:Hunan, China (Mainland)

HS Code:84295212

Production Capacity:300 Sets/Month

Product Description

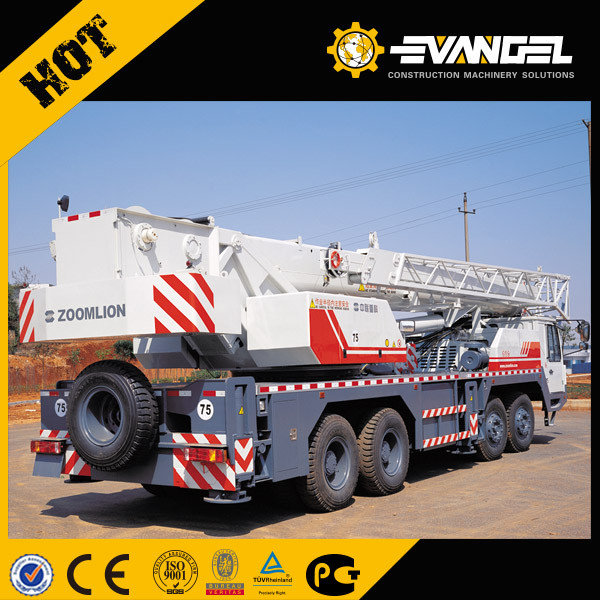

Zoomlion 35 ton New Truck Cranes (QY35V532)

The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.

Item		Value
Working performance specification	Max. rated total lifting capacity kg	35000
	Max. load moment of basic boom kN. m	1430
	Max. load moment with max. main boom length kN. m	720
	Max. lifting height of basic boom m	12.0
	Max. lifting height of main boom m	41.7
	Max. lifting height of fly jib m	56.4
Working speed	Max. speed of single rope on main winch m/min	120
	Max. speed of single rope onauxiliary winch m/min	100
	Derricking time of boom s	45
	Telescopic time of boom s	110
	Slewing speed r/min	0~2
Traveling specification	Max. traveling speed km/h	75
	Max. gradeability %	34
	Min. turning circle diameter m	24
	Min. ground clearance mm	272
	Oil consumption per hundred kilometers L	42
Mass specification	Deadweight of crane in traveling condition kg	35700
	Complete vehicle kerb mass kg	35570
	Front axle load kg	7688
	Rear axle load kg	28012
Dimension specification	Overall dimensions(L× W× H)mm mm	13200× 2650× 3625
	Base on outriggers m	5.695
	Distance between outriggers m	6.60
	Main boom length m	10.9~41.0
	Main boom angle°	-2~80
	Fly jib length m	9, 15
	Offset angle of fly jib °	0, 30
