16.5mm Mini Car Camera Fit for Front View/Rear View 170 Degree Waterproof

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

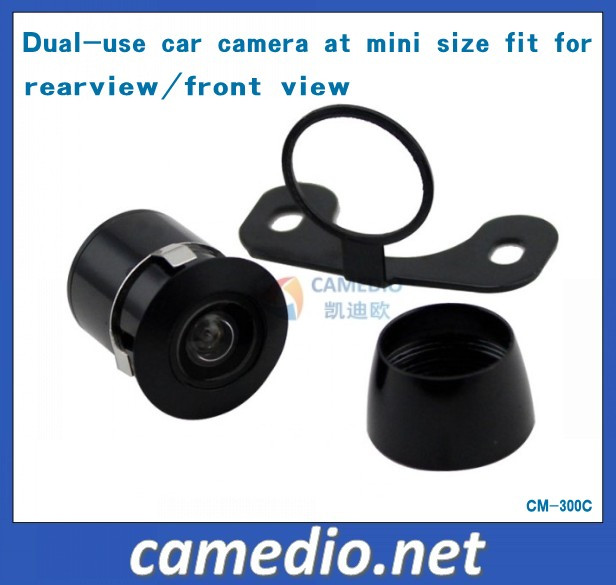

16.5mm Mini Car Camera Fit for Front View/Rear View 170 Degree Waterproof

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$6.99 - $7.69 / Piece

Min. Order (Pieces)	Unit Price
50.0	US $ 7.69/ Piece
500.0	US $ 7.49/ Piece
1000.0	US $ 6.99/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union, Paypal

Price Valid Time:From Sep 23, 2014 To Dec 23, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-300C

Shell Material:Alloy

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Waterproof

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420 Tvll/480 Tvl/520 Tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*28*32cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

1)Waterproof Back Up two-way function Car Rearview or Front view Camera 170 Degree View Angle

2)Diameter : 16.5mm

3). Built-in guideline for instant distance calculation

4). Versatile compatibility can be connected to any type of monitor

5). Suitable for safety and security

6). Waterproof and Appliacable to all type of vehcles.

7). Easy installation

Specification:

Image device: PC1030

TV system: PAL/NTSC

Resolution: 420 TV lines

Effective pixels: 648*488 pixels

Sensing area: 4.08 mm *3.12 mm

Shutter speed: 1/60-1/5000

Video output: 1.0 VP-P, 75 OHM

Gamma consumption: 0.45

White balance: Auto

Scanning system: 2: 1 interlace

Lens angle: 170 degree

Waterproof: IP67/68

Minimum illumination: 0.1 Lux/F=1.2(0 Lux with IR on)

Power supply: DC 12V

Main features:

1, Universal car Camera fit for rearview/front view

2, 170 Degree wide viewing angle

3, Die cast Metal housing

4, Small and compact design

5, Completely waterproof housing

6, Metal anti-theft bracket

7, Simple installation for installers

8, Low light sensitivity fo 0.1 Lux

9, Original image or mirror image optional

10,Color: Black

11,Requires a 12V DC power supply

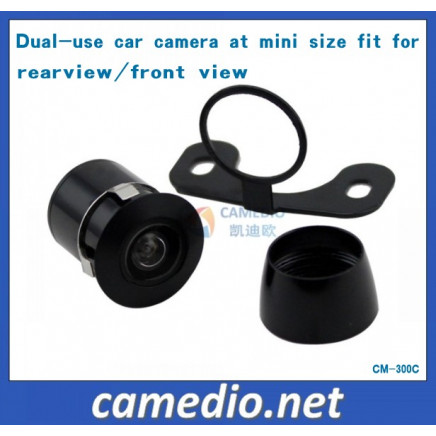

16.5mm Mini Car Camera Fit for Front View/Rear View 170 Degree Waterproof

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	928(H)*500(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
