High Resolution Rear View Camera Tail Gate Handle Camera for Audi

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Western Union, Paypal, Money Gram, Paypal

Trademark:CE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:LS-T01

Shell Material:Alloy

Probe Number:4

Interface:RCA

Function:Waterproof

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.0-0.3m

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*29*30cm G. W: 9.8kg

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

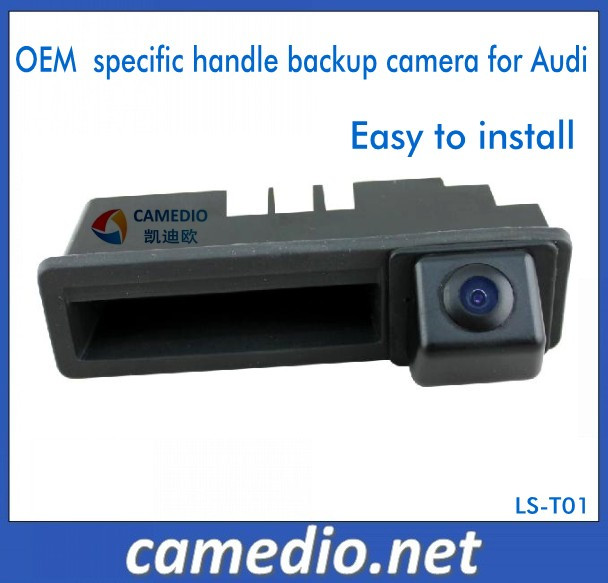

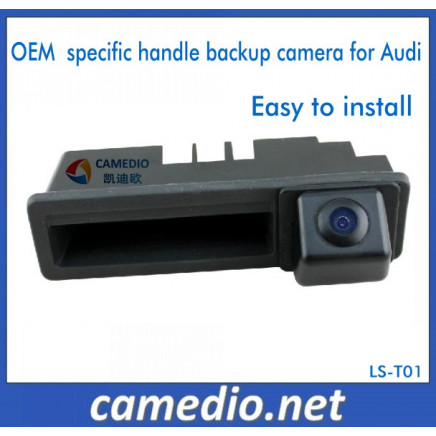

HD Waterproof Special Handle Car Camera for Audi

Installed in the position of the cars's door handles, non-destructive installation.

Good quality high definition rear view camera tail gate handle camera for Audi Q7 replace the original stock tail gate handle

The Tail gate handle camera is custom designed to replace the stock tail gate handle of Audi A4 A6L Q7 and A3. The camera itself is a 170° Wide-angle CMOS color camera that is set inside a custom tail-gate handle housing. Once the camera is installed, it looks completely stock and there are no wires showing. The custom design makes it very easy for installers, and there are no holes that have to be drilled into the tail gate handle for mounting.

Main features:
1, New design car shake handshandle camera for Audi A4 / A6L / Q7 / A3
2, 170 Degree wide viewing angle
3, Completely replace the original shake handshandle
4, High resolution PC7070 chip
5, Waterproof IP67K, dual case with good quality rubber protect case
6, Requires a 12V DC power supply
7, Easy install, no need drill hole and broke your car

Technical Specifications:
1, TV Systems: NTSC/PAL
2, Image Sensors: Color CMOS
3, Total Pixels: 688*496
4, Resolution: 420 TV Lines
5, Lens: 2.8mm
6, Video Output: 1.0vp-p composite video at 75ohm
7, Power Supply: DC 9V-15V
8, Operating Temperature (Deg. C) -30o C~ +70o C
9, Water Proof, Anti-Shock

Packaging
Items per Carton: 50 Pieces/Carton
Package Measurements: 38X34X18 cm
Gross Weight: 11.0 kg
Package Type: Nice gift box, we can made with your own brandname pacakge.

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	720(H)*540(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
