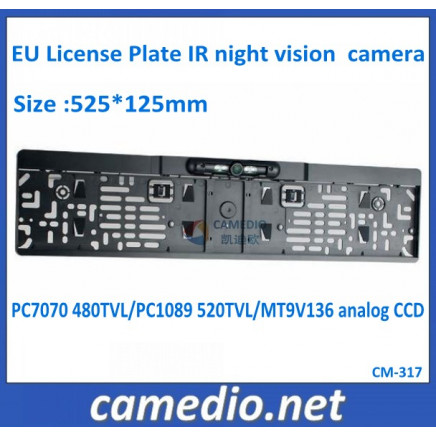

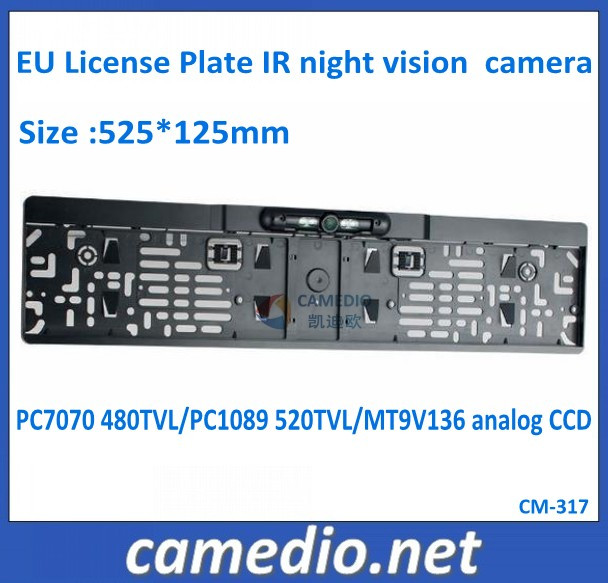

OEM HD Waterproof Color EU License Plate Frame Reverse Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Money Gram, Western Union, Paypal

Trademark:CE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-317

Shell Material:Alloy

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Night Vision

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Probe Diameter:18.8mm

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

IR Lights:4

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Warranty:13 Months

Export Markets:Global

Additional Info.

Trademark:CE

Packing:20PCS/Carton, Carton Size 58*31*50cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:20000PCS/Month

Product Description

1. High definition
2. Shockproof
3. Waterproof, shatterproof protection level equals to IP68K
4. IR night vision

Features:
High definition

Shockproof

Waterproof, shatterproof protection level equals to IP68K

Super wide angle(135° )

Night vision available, day/night sensor for automatic adjustment

Flexible installation: Can be mounted on rear, front, or either side of vehicles

Camera angle is adjustable

Performs in rugged conditions. Operating temperature: -20º C +70º C

Mirror / Real optional

Reversing grid is optional

Three working positions: Protection, reverse, rear view

CCD chips available

Hidden-type, specially designed for car rear view system

Fixed spring adds convenience and reliability insatllation

Electrical Parameters:
Input voltage: 12V

Input current: 80MA-120MA

Average power consumption: <1W

Environmental Parameter

Operating humidity: -20~+75(RH95%, Max)

Storage humidity: -30~+85(RH95%, Max)

The IP rating: IP68

Optical Parameter:
Image sensor: CMOS

Signal system: Analog signals

TV line: 480line

Effective pixels: 648*488

Scanning system: 1/50Hz, 1/60Hz

Sensing area: 5.5um*5.5um

Minimum illumination: 0.2lux

Night vision distance: 5m-10m

Lens: 1.7mm

Signal to noise ratio: >48db

Shutter speed: 1/10000second

Video output: 1.0vp-p. 75ohm

Specifications for different image devices

A. PC1030 (parking guide line)
Image device: PC1030	Resolution: 420 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Video output: 1.0 VP-P,75 OHM	Operation temperature: -20ºC - 70ºC,RH 95% MAX
Effective pixels: 648×488 pixels	Gamma consumption: 0.45	Storage temperature: -40 - 85,RH 95% MAX
Electronic Shutter : 1/60-1/5000	White balance: auto	Waterproof: IP67/68

B. MT9V136 (parking guide line)
Image device: MT9V136	Resolution: 480 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Video output: 1.0 VP-P,75 OHM	Operation temperature: -20ºC-70ºC,RH 95% MAX
Effective pixels: 720x576/480 pixels	Gamma consumption: 0.45	Storage temperature: -40ºC-85ºC,RH 95% MAX
Electronic Shutter: 1-1/10000	White balance: auto	Waterproof: IP67/68

C. PC1089 (parking guide line)
Image device: PC1089	Resolution: 520 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Dark Signal: 46.7 mV/sec @60ºC	Operation temperature: -40ºC-70ºC,RH 95% MAX
Effective pixels: 765×652 pixels	Sensitivity: 9.67 V/Lux.sec	DynamicRange: 63.7 dB
Scanning system: 2:1 interlace	Waterproof: IP 67/68	SNR: 46.4 dB

D. Color Sony CCD
Image device: 1/3 "Sony CCD	Resolution: 480 TV lines	Power supply: DC 12V
TV System: PAL/NTSC	Sensing Area: 4.9X3.7 mm	Horizontal Sync.Frequency: 15.625/15.734 KHz
Video Output: 1Vp-p,75Ohm	S/N ratio : Better than 48dB	Pin lens: F=1.9mm/F=2.0 mm
Waterproof: Ip67/68	Operating Temperature( o C): -20~+75(RH95% Max.)	Angle of view: 170 °
