Universal Punching Mount Car Rear View Camera with 170 Degree Wide Viewing Angle

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Universal Punching Mount Car Rear View Camera with 170 Degree Wide Viewing Angle

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Money Gram, Western Union, Paypal

Trademark:CE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-305

Interface:RCA

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*28*32cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

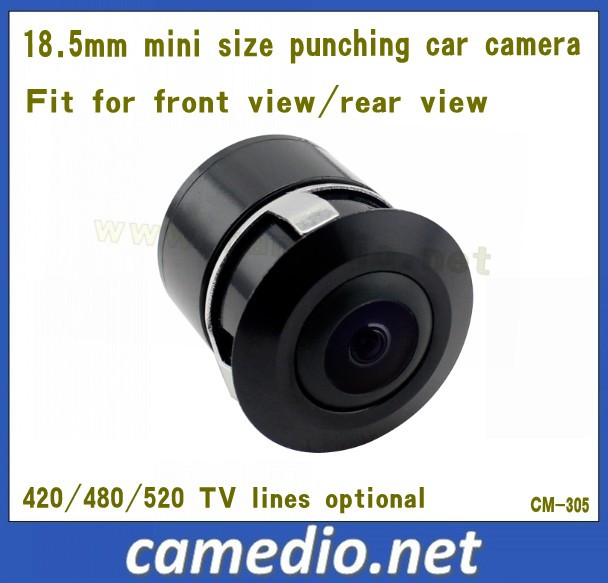

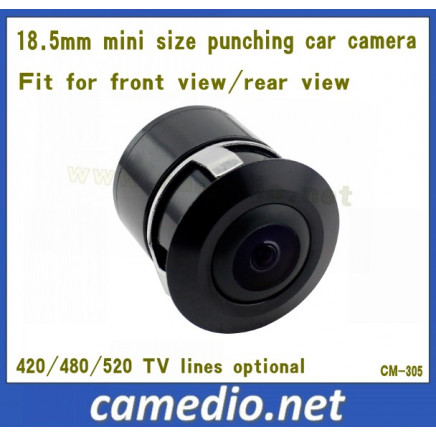

1)small mini size :18.5mm diammeter

2)day/ Night Vision 480TV lines Car Camera suitable for front view/rear view

3) with image sensor PC7070 480 TV lines CMOS in default

4) PAL/NTSC TV Systems optional.

5)Waterproof design, weather-resist.

6) Image sensor optional: PC1030 420 TV lines, MT9V136 analog CCD 480 TVlines

Specification:

Image sensor:PC7070
1. Effective pixels: 682*504 pixels
2. Video output: 1Vp_p±10%
3. Scanning system: 2: 1 interlace
4. Minimum illumination: 0.01 Lux/F=1.2(0 Lux with IR on)
5. Operation temperature: -20° C - 75° C, RH 95% MAX
6. TV system: PAL/NTSC
7. Sensing area: 3.8 mm *2.9 mm
8. SNR:>47.2dB
9. Lens angle: 135° /170°
10. Resolution: 480 TV lines
11. Shutter speed: 1-1/10000
12. White balance: Auto
13. Waterproof: IP67/68
14. Power supply: Analog : 2.8V, HVDD : 2.8V, CVDD : 2.8V
15. Working temperature: -20° C - 70° C, RH 95% MAX

Main features:

1, Universal car Rearview Backup Camera

2, 170 Degree wide viewing angle

3, Die cast Metal housing

4, Small and compact design

5, Completely waterproof housing

6, Metal anti-theft bracket

7, Simple installation for installers

8, Low light sensitivity fo 0.1 Lux

9, Reverse image

10,Color: Black

11,Requires a 12V DC power supply

Package:

1 x Color car rear view camera
1 x 1.5 Power supply cable
1 x 6m Video cable
1 x English user manual
2 x screws

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	928(H)*500(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
