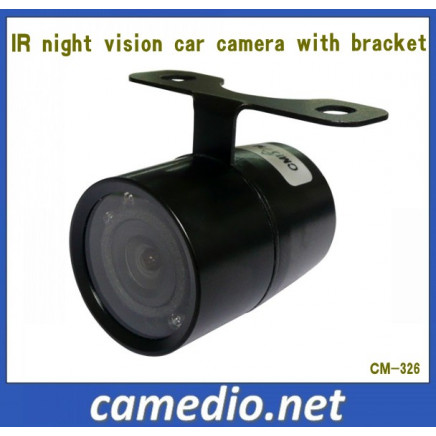

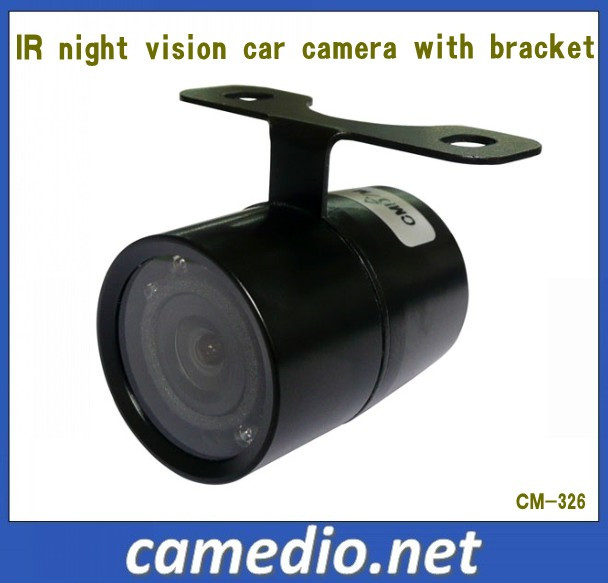

Waterproof Color CMOS IR Night Vision Camera for Cars with Bracket

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$7.0 - $9.9 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 9.9/ Piece
5000.0	US $ 7/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union, Paypal

Price Valid Time:From Aug 08, 2014 To Nov 08, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-326

Interface:RCA

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*28*32cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

*High-definition and wide degree viewing angle

*8pcs Infrared IR LED'S night vision

* Bracket mount with screws

*Versatile compatibility can be connected to most type of monitor

*Suitable for safety and security

*With good waterproof function

*Easy installation and can be installed in several ways

*Connected with your in-Car DVD Player or Rear View Mirror or GPS

*Parking distance on/off can be switched

Specification:
Image sensor: Color CMOS
TV system: NTSC/PAL
Effective pixels: 658 x 462 Pixels/628 x 586 Pixels
Sensing area: 5.961 x 4.276mm
Horizontal resolution: 420TVL
Shutter speed: 1/60-20us
Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led)
Lens Angle: 170°
White balance: Auto
Color: Black
Waterproof: IP67-IP68
Video output: 1.0Vp-p, 75ohm
Current Consumption: No More 300mA
Power supply: DC 12V
Operating Temperature: -20° C~ 60° C, RH95% Max.
Storage temperature: -30° C ~ 60° C, RH95% Max.
Video cable length: 6m
Power supply cable length: 1.5m

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	928(H)*500(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
