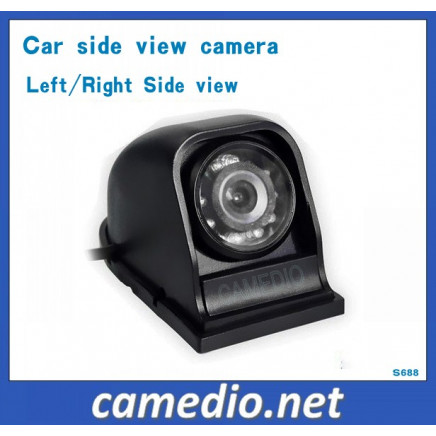

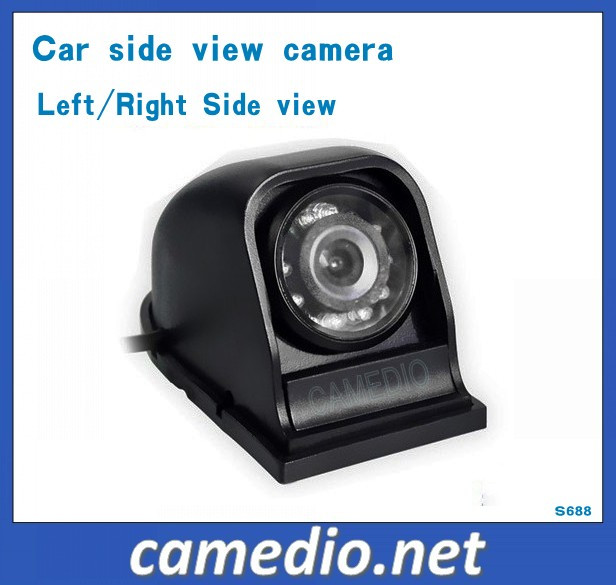

Waterproof IR Night Vision Car Side View Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Money Gram, Western Union, Paypal

Packing:50PCS/Carton, Carton Size: 43*29*42, G. W: 11.7kg

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:S688

Technology:Infrared

Type:Car Camera

Horizontal Resolution:480tvl

Feature:Waterproof / Weatherproof, High Definition

Image Sensor:Sharp CCD/Sony CCD

Resolution:480/520 Tvl Optional

IR Lights:9PCS

Voltage:12V

Connector:RCA/Aviation Optional

Material:ABA

Lens Angle:120 Degree

Export Markets:Global

Additional Info.

Packing:50PCS/Carton, Carton Size: 43*29*42, G. W: 11.7kg

Standard:CMOS 480TV lines in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:20000PCS/Month

Product Description

Car side view camera, night vision side view camera

Image feature:Sharp CCD/Song CCD optional

TV System:NTSC/PAL

Image area:5.961mm×4.276mm

Effective pixels:N:510(H)x492(V)/P:500(H)x582(V)

Specification:

-Images Sensors:Sharp CCD

-TV System:PAL/NTSC

-Effective Pixels:500X582/510X492

-Sensing Area(mm):4.9X3.7

-Resolution(TV Lines): 420TVL

-Min.illumination:0LUX

-Video Output: 1Vp-p,75 Ohm

-BLC : Auto

-S/N ratio : Better than 48dB

-Lens: F=2.8mm

-Lens Angle(Deg.) : 120 degree

-IR LED:9 PCS

-Ip rating: Ip67

-Current Consumption(mA) :300mA

-Power Supply(DC): 12V(24V optional)

-Operating Temperature(Deg.C): -20~+70(RH95%Max.)

-Storage Temperature(Deg.C) : -40~+80(RH95%Max.)

-Dimension: 83*42*50mm
