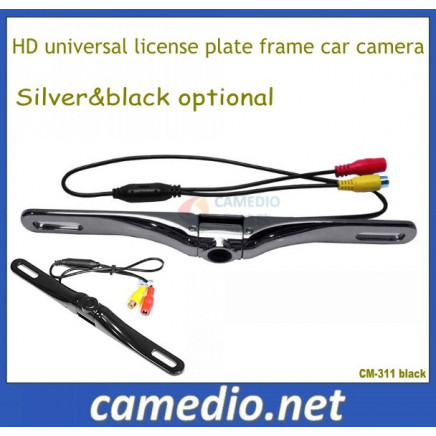

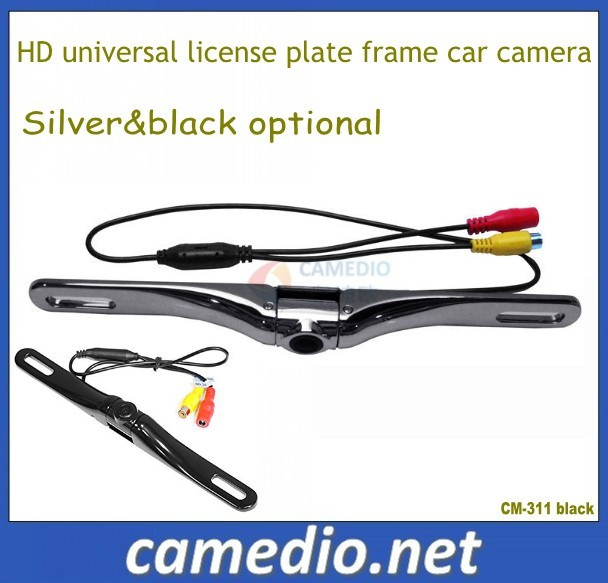

High Quality Metal Housing HD Universal License Plate Car Reversing Vehicle Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:10 Pieces

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Money Gram, Western Union, Paypal

Trademark:CE

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CM-311 Black

Shell Material:Iron

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Waterproof

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Probe Diameter:18.8mm

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Sensor:PC7070/PC3030/Mt9V136/PC1089

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Work Voltage:12V

Warranty:12 Months

Export Markets:Global

Additional Info.

Trademark:CE

Packing:20PCS/Carton, Carton Size 58*31*50cm

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:20000PCS/Month

Product Description

1)Exquisite high cleass metal housing design ,

2)waterproof,and day/night vision

3)Wide viewing angle 170 degree

4)Color of Tarnish and silver optional

5)4 kinds of image sensors available:PC7070 480TV lines CMOS, PC3030 480TV lines CMOS, MT9V136 Analog CCD 480TV lines, PC1089 520TV lines CMOS (CCD level)

Specification:
Image sensor: PC7070 (standard one in default)
1. Effective pixels: 682*504 pixels
2. Video output: 1Vp_p± 10%
3. Scanning system: 2: 1 interlace
4. Minimum illumination: 0.01 Lux/F=1.2(0 Lux with IR on)
5. Operation temperature: -20° C - 75° C, RH 95% MAX
6. TV system: PAL/NTSC
7. Sensing area: 3.8 mm *2.9 mm
8. SNR: >47.2dB
9. Lens angle: 135° /170°
10. Resolution: 480 TV lines
11. Shutter speed: 1-1/10000
12. White balance: Auto
13. Waterproof: IP67/68
14. Power supply: Analog: 2.8V, HVDD: 2.8V, CVDD: 2.8V
15. Working temperature: -20° C - 70° C, RH 95% MAX

Installation Guides:
1. Get out the license light;

2. Get the rear view lens lines across the license light original position;

3. Fasten the camera with the buckle which place in the two sides of the camera;

4. Connect the lens built-in license light power lines to the original license light power lines;

5. Connect the reverse lens switching lines;

6. Connect the camera's signal line to the signal extension line;

7. Connect the car's reverse light line to camera's video cable;

8. Check if all lines are correct connected and arranged;

9. Debug the working effects of the camera and the license light;

10. Cover the car trunk. Finished.

Specifications for different image devices

A. PC1030 (parking guide line)
Image device: PC1030	Resolution: 420 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Video output: 1.0 VP-P,75 OHM	Operation temperature: -20ºC - 70ºC,RH 95% MAX
Effective pixels: 648×488 pixels	Gamma consumption: 0.45	Storage temperature: -40 - 85,RH 95% MAX
Electronic Shutter : 1/60-1/5000	White balance: auto	Waterproof: IP67/68

B. MT9V136 (parking guide line)
Image device: MT9V136	Resolution: 480 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Video output: 1.0 VP-P,75 OHM	Operation temperature: -20ºC-70ºC,RH 95% MAX
Effective pixels: 720x576/480 pixels	Gamma consumption: 0.45	Storage temperature: -40ºC-85ºC,RH 95% MAX
Electronic Shutter: 1-1/10000	White balance: auto	Waterproof: IP67/68

C. PC1089 (parking guide line)
Image device: PC1089	Resolution: 520 TV lines	Power supply: DC 12V
TV system: PAL/NTSC	Dark Signal: 46.7 mV/sec @60ºC	Operation temperature: -40ºC-70ºC,RH 95% MAX
Effective pixels: 765×652 pixels	Sensitivity: 9.67 V/Lux.sec	DynamicRange: 63.7 dB
Scanning system: 2:1 interlace	Waterproof: IP 67/68	SNR: 46.4 dB

D. Color Sony CCD
Image device: 1/3 "Sony CCD	Resolution: 480 TV lines	Power supply: DC 12V
TV System: PAL/NTSC	Sensing Area: 4.9X3.7 mm	Horizontal Sync.Frequency: 15.625/15.734 KHz
Video Output: 1Vp-p,75Ohm	S/N ratio : Better than 48dB	Pin lens: F=1.9mm/F=2.0 mm
Waterproof: Ip67/68	Operating Temperature( o C): -20~+75(RH95% Max.)	Angle of view: 170 °
