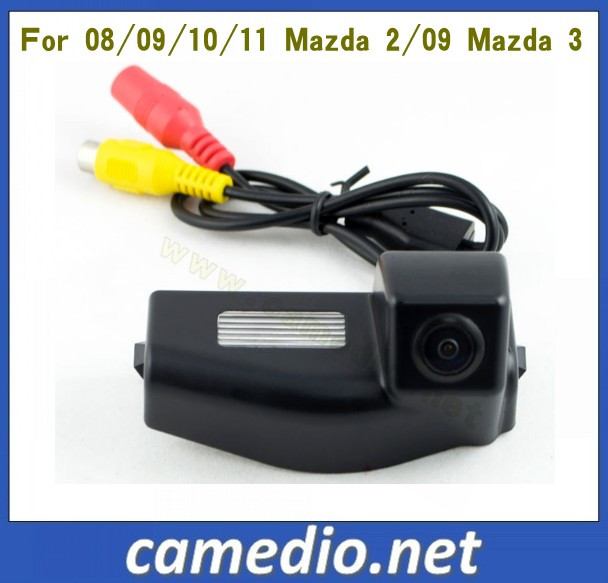

Special Rearview Backup Car Camera for Mazda 2/ 09 Mazda 3

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$6.9 - $8.6 / Piece

Min. Order (Pieces)	Unit Price
10.0	US $ 8.6/ Piece
1000.0	US $ 6.9/ Piece

Trade Terms: FOB, EXW

Payment Terms: T/T, Paypal, Money Gram, Western Union, Paypal

Price Valid Time:From Jul 19, 2015 To Oct 19, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:For mazda 3

Shell Material:ABS Plastic

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Waterproof

Definition:480TV Lines

Chip:CMOS

Waterproof Grade:IP68

Alarming Distance:2.5-0.3m

Probe Diameter:18.8mm

Image Sensor Available:PC1030/PC7070/Mt9V136/PC1089

Camera Degree:170 Degree

Waterproof:Yes

TV System:PAL/NTSC

Minimum Illumination:0.1lux

Pixels:628X582

Resolution:420tvl/480 Tvl/520tvl Optional

Export Markets:Global

Additional Info.

Trademark:CE

Packing:50PCS/Carton, Carton Size 43*29*30cm G. W: 9.8kg

Standard:480TV lines CMOS in default

Origin:China, Shenzhen

HS Code:8525801390

Production Capacity:30000PCS/Month

Product Description

1)Special rear view car camera for 08/09/10/11 Mazda 2/09 Mazda 3

2) 1/3 Color CMOS image sensor, 480 TV lines

3) PAL/NTSC TV Systems optional.

4)Waterproof design, weather-resist.

5) Image sensor optional: PC1030 420 TV lines, MT9V136 analog CCD 480 TVlines, PC1089 520TVL CCD

Specification:
Image sensor: PC7070
1. Effective pixels: 682*504 pixels

2. Video output: 1Vp_p± 10%

3. Scanning system: 2: 1 interlace

4. Minimum illumination: 0.01 Lux/F=1.2(0 Lux with IR on)

5. Operation temperature: -20° C - 75° C, RH 95% MAX

6. TV system: PAL/NTSC

7. Sensing area: 3.8 mm *2.9 mm

8. SNR: >47.2dB

9. Lens angle: 135° /170°

10. Resolution: 480 TV lines

11. Shutter speed: 1-1/10000

12. White balance: Auto

13. Waterproof: IP67/68

14. Power supply: Analog: 2.8V, HVDD: 2.8V, CVDD: 2.8V

15. Working temperature: -20° C - 70° C, RH 95% MAX

Specifications for different image devices:

Image Sensor	Color CMOS PC1030	Color CCD PC3030	Color MT9V136	Color PC1089K
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC	PAL/NTSC
Effective Pixels	648*488Pixels	728(H)*488(V)	720*576/480Pixels	928(H)*500(V)
Horizontal resolution	420TVL	480TVL	480TVL	500TVL
Sening area	4.08mm*3.12mm	3.584mm*2.688mm	3.584mm*2.688mm	3.584mm*2.688mm
Shutter speed	1/60-1/5000	1/60-1/20000	1-1/10000	1-1/10000
Minimum Illumination	0.1lUX/F=1.2(OLux with ON	0.1Lux/F=1.2(Olux with ON)	0.01Lux/F=1.2(OLux with OR ON)	0.01Lux/F=1.2(Olux with OR ON)
Video output	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm	1.0vP-Pat 75 ohm
Power Supply	DC12V	DC12V	DC12V	DC12V
Operating temperature	-20°C~75°C,RH 95%MAX	-20°C~75°C,RH 95% MAX	-20°C~75°C,RH 95% MAX	-20°C-75°C,RH 95% MAX
Storage temperature	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX	-40°C-85°C,RH 95% MAX
Lens angle	170°	170°	170°	170°
Waterproof	IP69K	IP69K	IP69K	IP69K
White Balance	auto	auto	auto	auto
